Multiplex MCP Servers

Aggregate tools from multiple MCP servers into a single endpoint.

What you’ll build

In this tutorial, you’ll:

1. Configure Agent Gateway to multiplex multiple MCP servers
2. Combine a time server (Python) and an everything server (Node.js)
3. Access all tools through a single unified endpoint
4. Test tools with automatic server name prefixing

Prerequisites

• Node.js installed
• uv installed (for Python MCP servers)

Step 1: Install Agent Gateway

curl -sL https://raw.githubusercontent.com/agentgateway/agentgateway/refs/heads/main/common/scripts/get-agentgateway | bash

Step 2: Create the config

cat > config.yaml << 'EOF'
binds:
- port: 3000
  listeners:
  - routes:
    - policies:
        cors:
          allowOrigins: ["*"]
          allowHeaders: [mcp-protocol-version, content-type, cache-control]
          exposeHeaders: ["Mcp-Session-Id"]
      backends:
      - mcp:
          targets:
          - name: time
            stdio:
              cmd: uvx
              args: ["mcp-server-time"]
          - name: everything
            stdio:
              cmd: npx
              args: ["@modelcontextprotocol/server-everything"]
EOF

Step 3: Start Agent Gateway

agentgateway -f config.yaml

You should see:

INFO agentgateway: Listening on 0.0.0.0:3000
INFO agentgateway: Admin UI available at http://localhost:15000/ui/

Step 4: View backends in the UI

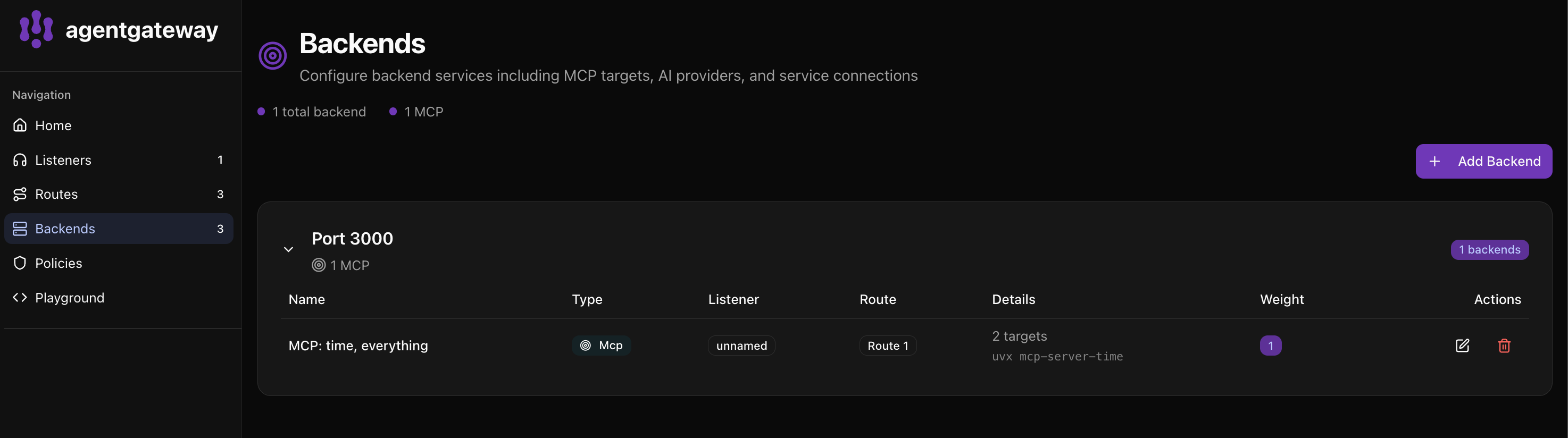

Go to http://localhost:15000/ui/ and click Backends to see your multiplexed MCP servers:

The UI shows:

• 1 total backend with 1 MCP configuration
• MCP: time, everything - Both servers combined into one backend
• 2 targets - uvx mcp-server-time and the everything server

Step 5: Test in the Playground

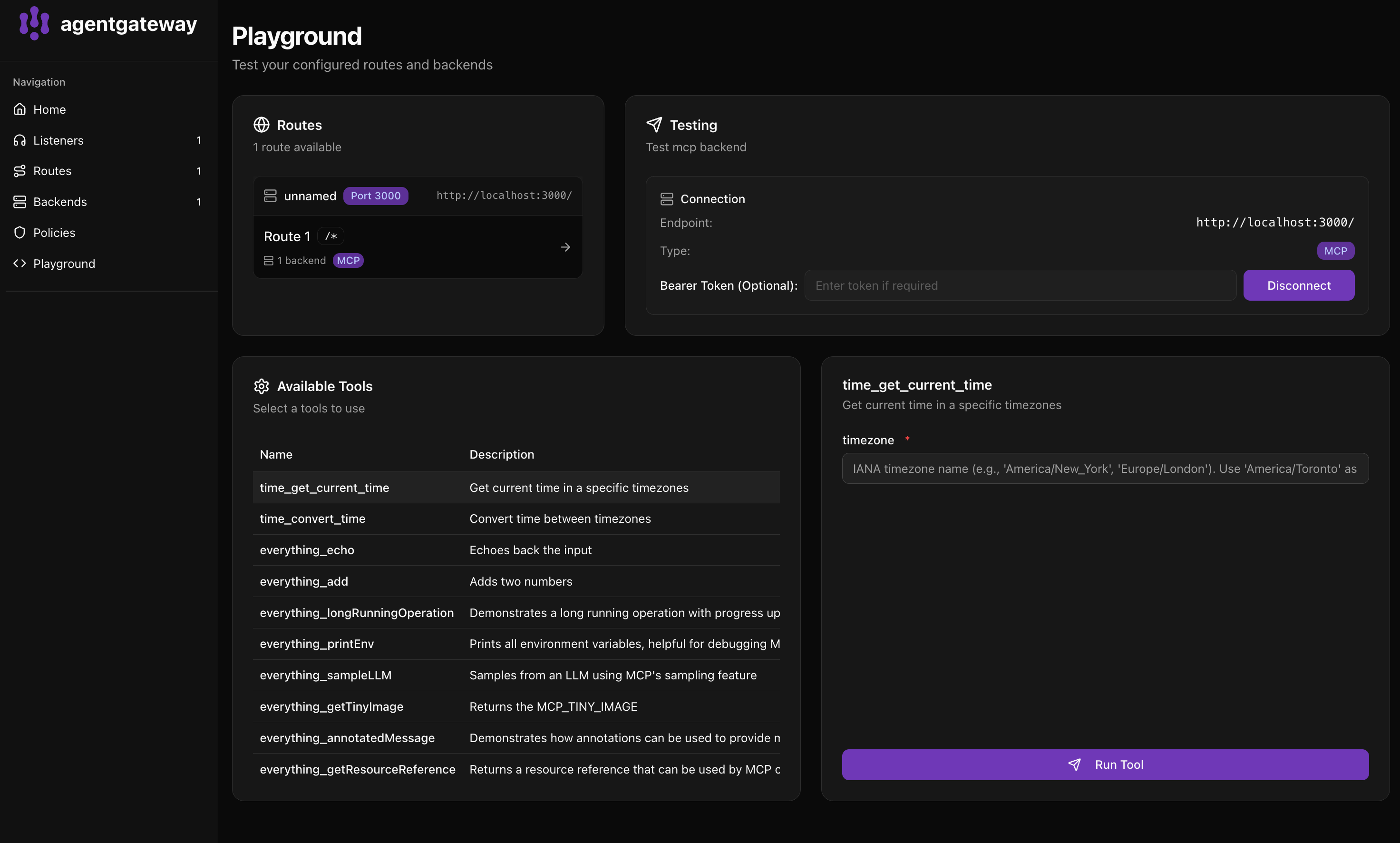

Click Playground to test your multiplexed tools:

1. Select Route 1 in the Routes panel
2. Click Connect to discover all tools
3. Available Tools shows tools from both servers:
   • time_get_current_time - Get current time in a specific timezone
   • time_convert_time - Convert time between timezones
   • everything_echo - Echoes back the input
   • everything_add - Adds two numbers
   • And more…

Notice tools are prefixed with their server name (time_ and everything_).

Step 6: Run a tool

1. Click on time_get_current_time in the Available Tools list
2. Enter a timezone (e.g., America/New_York)
3. Click Run Tool

You’ll see the current time in the response panel.

What’s happening?

Agent Gateway federates multiple MCP servers:

┌─────────────────────────────────────────────┐
│              Agent Gateway                   │
│                 :3000                        │
├─────────────────────────────────────────────┤
│  time_*        →  mcp-server-time           │
│  everything_*  →  server-everything         │
└─────────────────────────────────────────────┘

• Tools are automatically prefixed with the target name
• Clients connect to one endpoint and access all tools
• Each backend MCP server runs as a subprocess
