Basic MCP Server

Get up and running with Agent Gateway in under 2 minutes.

What you’ll build

In this tutorial, you’ll:

1. Install and run Agent Gateway
2. Connect to a sample MCP server with demo tools
3. Use the Admin UI to explore your configuration
4. Test tools in the built-in Playground

Prerequisites

• Node.js installed (for the MCP server)

Step 1: Install Agent Gateway

curl -sL https://raw.githubusercontent.com/agentgateway/agentgateway/refs/heads/main/common/scripts/get-agentgateway | bash

Step 2: Download the example config

curl -sL https://raw.githubusercontent.com/agentgateway/agentgateway/main/examples/basic/config.yaml -o config.yaml

Step 3: Start Agent Gateway

agentgateway -f config.yaml

You should see:

INFO agentgateway: Listening on 0.0.0.0:3000
INFO agentgateway: Admin UI available at http://localhost:15000/ui/

Step 4: Open the UI

Open your browser and go to http://localhost:15000/ui/

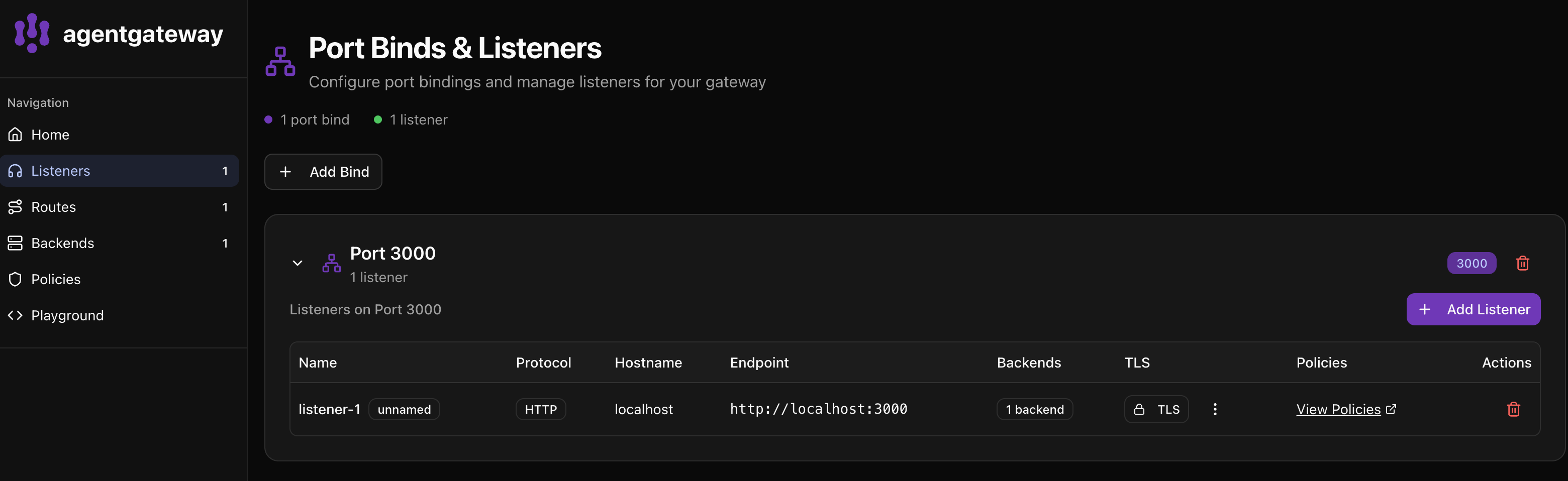

You’ll see the Agent Gateway dashboard showing your configured listeners:

The UI shows:

• Port 3000 is bound with 1 listener
• listener-1 using HTTP protocol
• 1 backend configured (your MCP server)

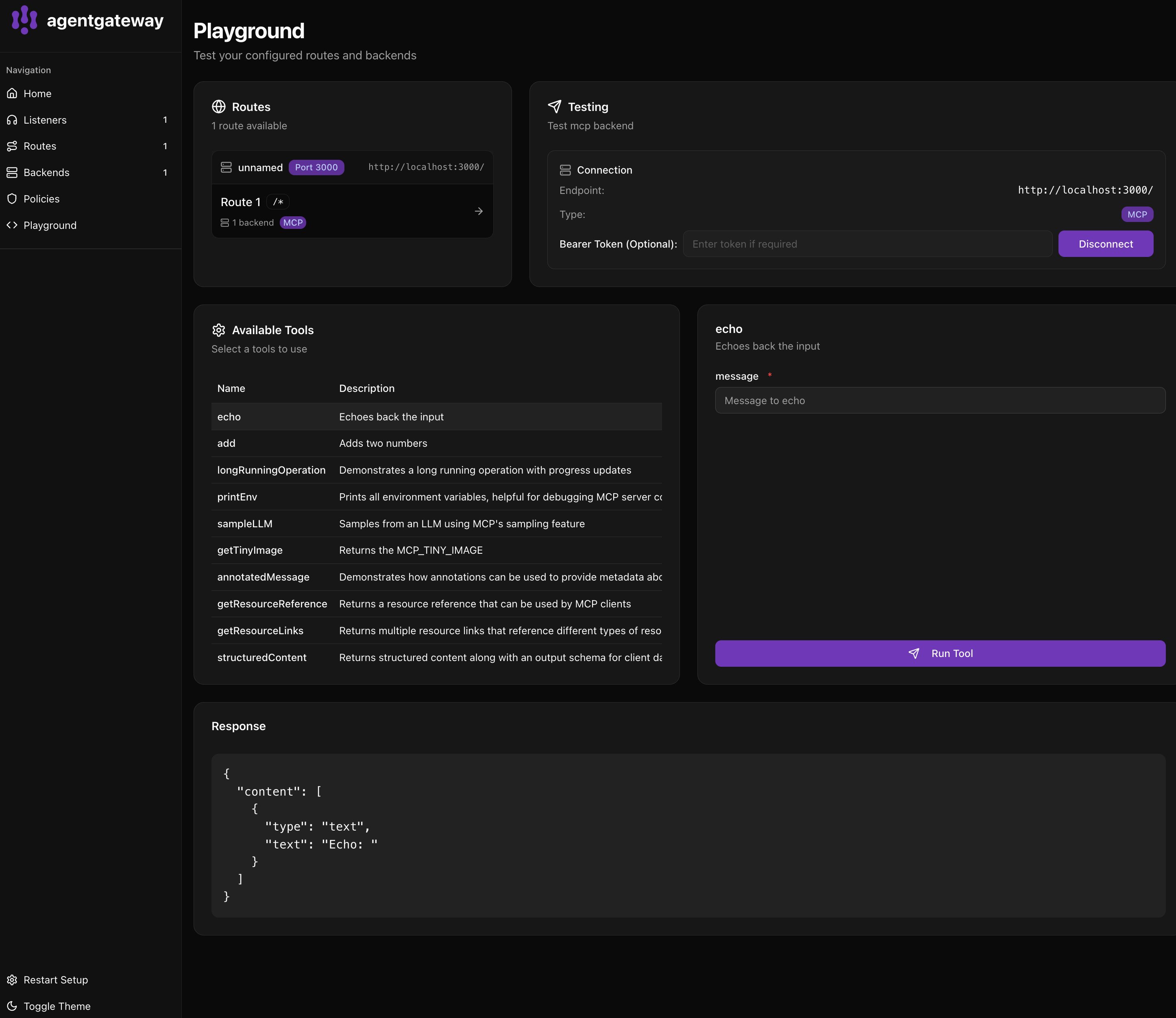

Step 5: Test in the Playground

Click Playground in the left sidebar to test your MCP server.

1. In Routes, select Route 1 (your MCP route)
2. The Testing panel shows your connection at http://localhost:3000/
3. Click Connect (or it auto-connects)
4. Available Tools shows all tools from your MCP server:
   • echo - Echoes back the input
   • add - Adds two numbers
   • longRunningOperation - Demonstrates progress updates
   • And more…

Step 6: Run a tool

1. Click on echo in the Available Tools list
2. In the right panel, enter a message in the message field
3. Click Run Tool

You’ll see the response in the Response panel:

{
  "content": [
    {
      "type": "text",
      "text": "Echo: Hello from Agent Gateway!"
    }
  ]
}

What’s in the config?

binds:
- port: 3000              # Listen on port 3000
  listeners:
  - routes:
    - policies:
        cors:             # Allow browser connections
          allowOrigins: ["*"]
          allowHeaders: [mcp-protocol-version, content-type, cache-control]
          exposeHeaders: ["Mcp-Session-Id"]
      backends:
      - mcp:
          targets:
          - name: everything
            stdio:        # Run a local MCP server
              cmd: npx
              args: ["@modelcontextprotocol/server-everything"]

• Listens on port 3000 for MCP client connections
• Enables CORS so browser-based clients can connect
• Runs the “everything” MCP server which provides sample tools
