Routes

Configure HTTP and TCP routes with matching conditions and other traffic management policies.

You can use the built-in agentgateway UI or a configuration file to create, update, and delete routes.

About routes

Routes are the entry points for traffic to your agentgateway. They are configured on listeners and are used to route traffic to backends.

Based on the schema, you can configure the following matching conditions for routes.

Path Matching

If no path match is specified, the default is to match all paths (/).

You can match incoming requests based on their path using one of the following strategies:

Type Example Description
Exact { "exact": "/foo/bar" } Matches only the exact path /foo/bar
Prefix { "pathPrefix": "/foo" } Matches any path starting with /foo
Regex { "regex": ["^/foo/[0-9]+$", 0] } Matches paths using a regular expression
ℹ️
Only one of exact, pathPrefix, or regex can be specified per path matcher.

Header Matching

You can match on HTTP headers:

  • Exact match:
    { "name": "Authorization", "value": { "exact": "Bearer token" } }
  • Regex match:
    { "name": "Authorization", "value": { "regex": "^Bearer .*" } }

Method Matching

Optionally restrict matches to specific HTTP methods:

{ "method": { "method": "GET" } }

Query Parameter Matching

Match on query parameters, either by exact value or regex:

  • Exact:
    { "name": "version", "value": { "exact": "v1" } }
  • Regex:
    { "name": "version", "value": { "regex": "^v[0-9]+$" } }

Before you begin

Set up a listener.

Create routes

Set up a route on your listener.

  1. Start your agentgateway.

    agentgateway

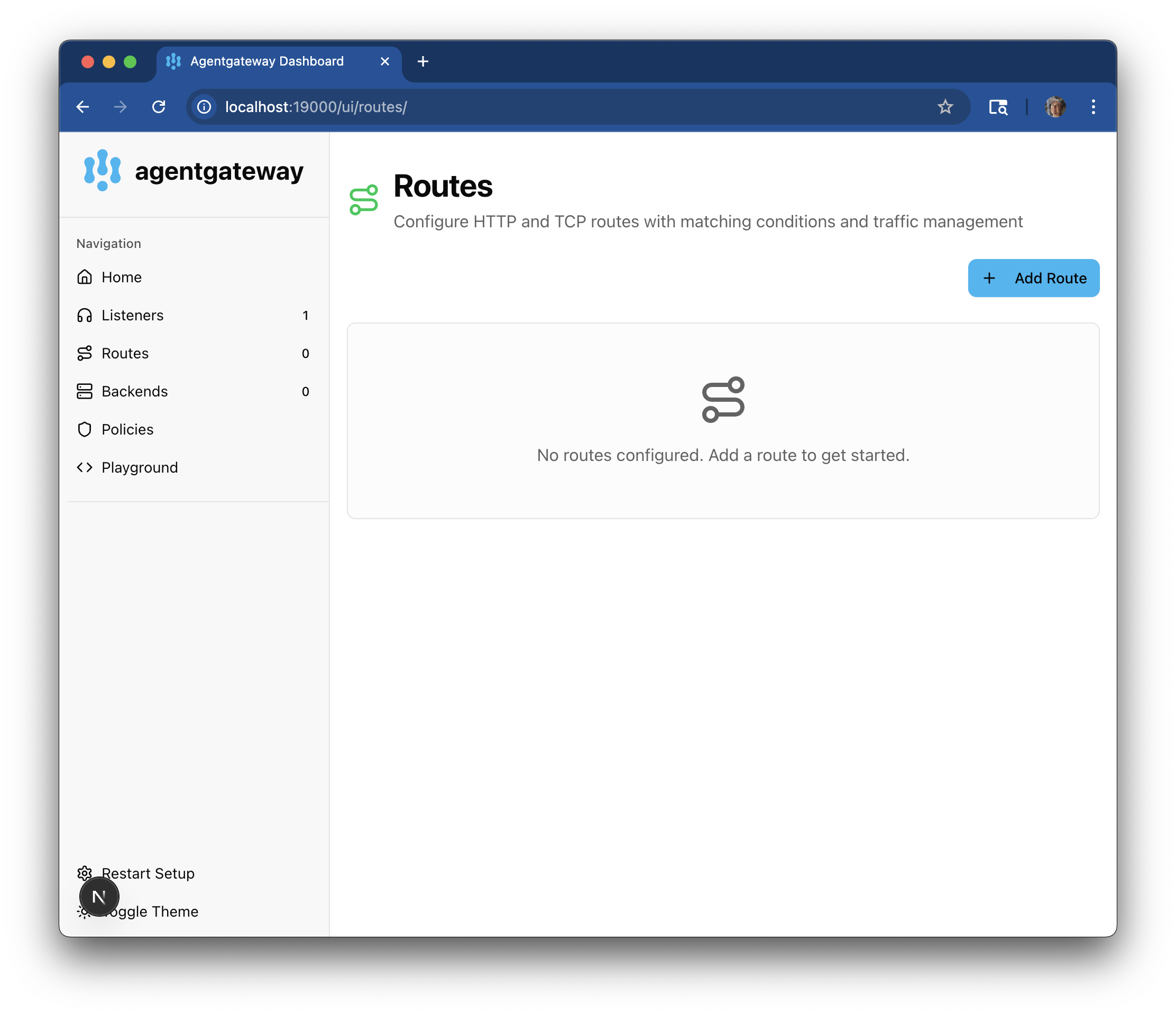

  2. Open the agentgateway route UI.

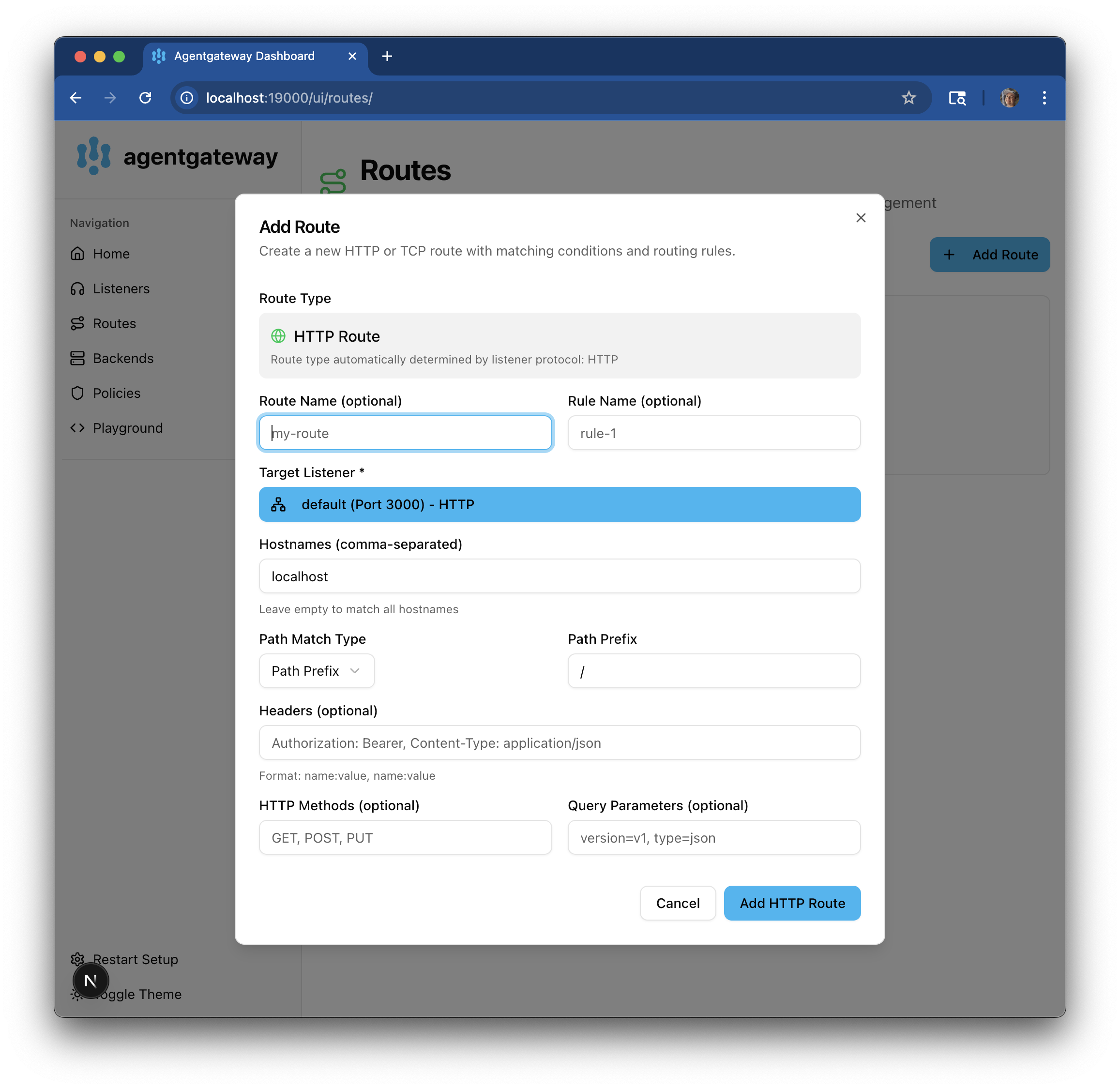

  3. Click Add Route and configure a route such as follows:

    • Name: An optional name for the route.
    • Rule Name: An optional name for the matching rules of the route.
    • Target Listener: Select the listener that you previously created. The Route Type is automatically determined based on the listener protocol.
    • Hostnames: Add the hostnames that the route serves traffic on.
    • Path Match Type: Select the type of path matching that you want to use, such as Path Prefix, and then configure its details.
    • Headers: Optional header configuration, such as the authorization header.
    • HTTP Methods: Optional HTTP methods to allow, such as GET, POST, PUT.
    • Query Parameters: Optional query parameters to allow, such as version=v1.
    • Click Add HTTP Route to continue.

  1. Create a configuration file that contains your route configuration. The following example sets up an HTTP listener on port 3000 that matches on all hosts.

    cat <<EOF > config.yaml
binds:
- port: 3000
  listeners:
  - routes:
    - policies:
        cors:
          allowOrigins:
            - &#34;*&#34;
          allowHeaders:
            - mcp-protocol-version
            - content-type
      backends:
      - mcp:
          name: default
          targets:
          - name: everything
            stdio:
              cmd: npx
              args: [&#34;@modelcontextprotocol/server-everything&#34;]
EOF

  2. Run the agentgateway.

    agentgateway -f config.yaml

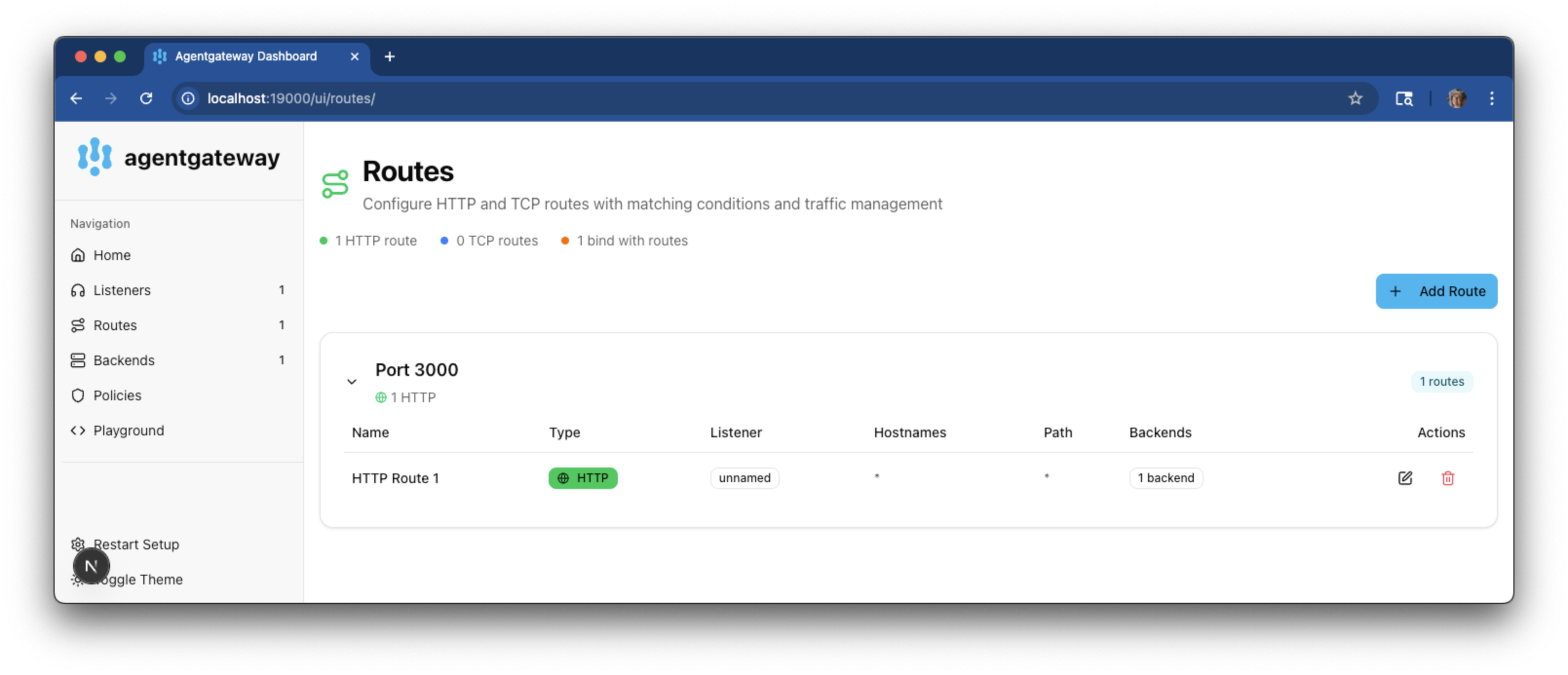

  3. Open the agentgateway listener UI and verify that your route is added successfully.

Delete routes

Remove agentgateway routes by using the UI or deleting the configuration file.

Remove agentgateway routes with the UI.

  1. Run the agentgateway from which you want to remove a route.

    agentgateway -f config.yaml

  2. Open the agentgateway route UI and find the route that you want to remove.

  3. Click the trash icon to remove the route.

Update the configuration file to remove the route.

  1. Remove the route from your configuration file.

  2. Apply the updated configuration file to your agentgateway.

    agentgateway -f config.yaml
