Authenticate and authorize requests

Use a JWT token to authenticate requests before forwarding them to a target.

Configure JWT and MCP auth policies

1. Download a configuration file for your agentgateway.

   curl -L https://raw.githubusercontent.com/agentgateway/agentgateway/refs/heads/main/examples/authorization/config.yaml -o config.yaml

2. Review the configuration file.

   • Listener: An HTTP listener that listens for incoming traffic on port 3000.
   • Route policies: The listener includes route policies for jwtAuth and mcpAuthorization.
   • jwtAuth: The jwtAuth policy configures how to authenticate clients. The example uses sample JWT keys and tokens for demo purposes only. Requests must have a valid JWT that matches the criteria, or are denied.
   • mcpAuthorization: The mcpAuthorization policy configures who is allowed to access certain resources. These authorization rules use the CEL Policy language. The example lets anyone call the echo tool, only the test-user call the add tool, and only users with a certain claim call the printEnv tool.

   cat config.yaml
   config.yaml

   binds:
   - port: 3000
     listeners:
     - routes:
       - policies:
           jwtAuth:
             issuer: agentgateway.dev
             audiences: [test.agentgateway.dev]
             jwks:
               # Relative to the folder the binary runs from, not the config file
               file: ./manifests/jwt/pub-key
           mcpAuthorization:
             rules:
             # Allow anyone to call 'echo'
             - 'mcp.tool.name == "echo"'
             # Only the test-user can call 'add'
             - 'jwt.sub == "test-user" && mcp.tool.name == "add"'
             # Any authenticated user with the claim `nested.key == value` can access 'printEnv'
             - 'mcp.tool.name == "printEnv" && jwt.nested.key == "value"'
         backends:
         - mcp:
             name: default
             targets:
             - name: everything
               stdio:
                 cmd: npx
                 args: ["@modelcontextprotocol/server-everything"]

3. Optional: To use the agentgateway UI playground later, add the following CORS policy to your config.yaml file. The config automatically reloads when you save the file.

   binds:
   - post: 3000
     listeners:
     - routes:
       - policies:
           cors:
             allowOrigins:
               - "*"
             allowHeaders:
               - "*"
         backends:
   ...

4. Save the public key of the JWKS that the policy refers to in the corresponding directory, such as the following example with manifests/jwt.

   mkdir -p manifests/jwt
   curl -L https://raw.githubusercontent.com/agentgateway/agentgateway/refs/heads/main/manifests/jwt/pub-key -o manifests/jwt/pub-key

5. Run the agentgateway.

   agentgateway -f config.yaml

Verify authentication

1. Open the agentgateway UI to view your listener and target configuration.

2. From the navigation menu, click Playground.



3. In the Testing card, review your Connection details and click Connect. The agentgateway UI connects to the targets that you configured and retrieves the tools that are exposed on the targets.

4. Verify that you see only the echo tool in the Available Tools list. Your JWT policy allows anyone to call the echo tool.



5. Verify that you get access to more tools by providing a JWT with no claims.

   1. In a new browser tab, copy the JWT from the example2.key file. This JWT is for the test-user and has no claims. To review the JWT details, you can use a tool like jwt.io.

   2. In the Playground UI, copy the JWT into the Bearer Token field and click Connect.

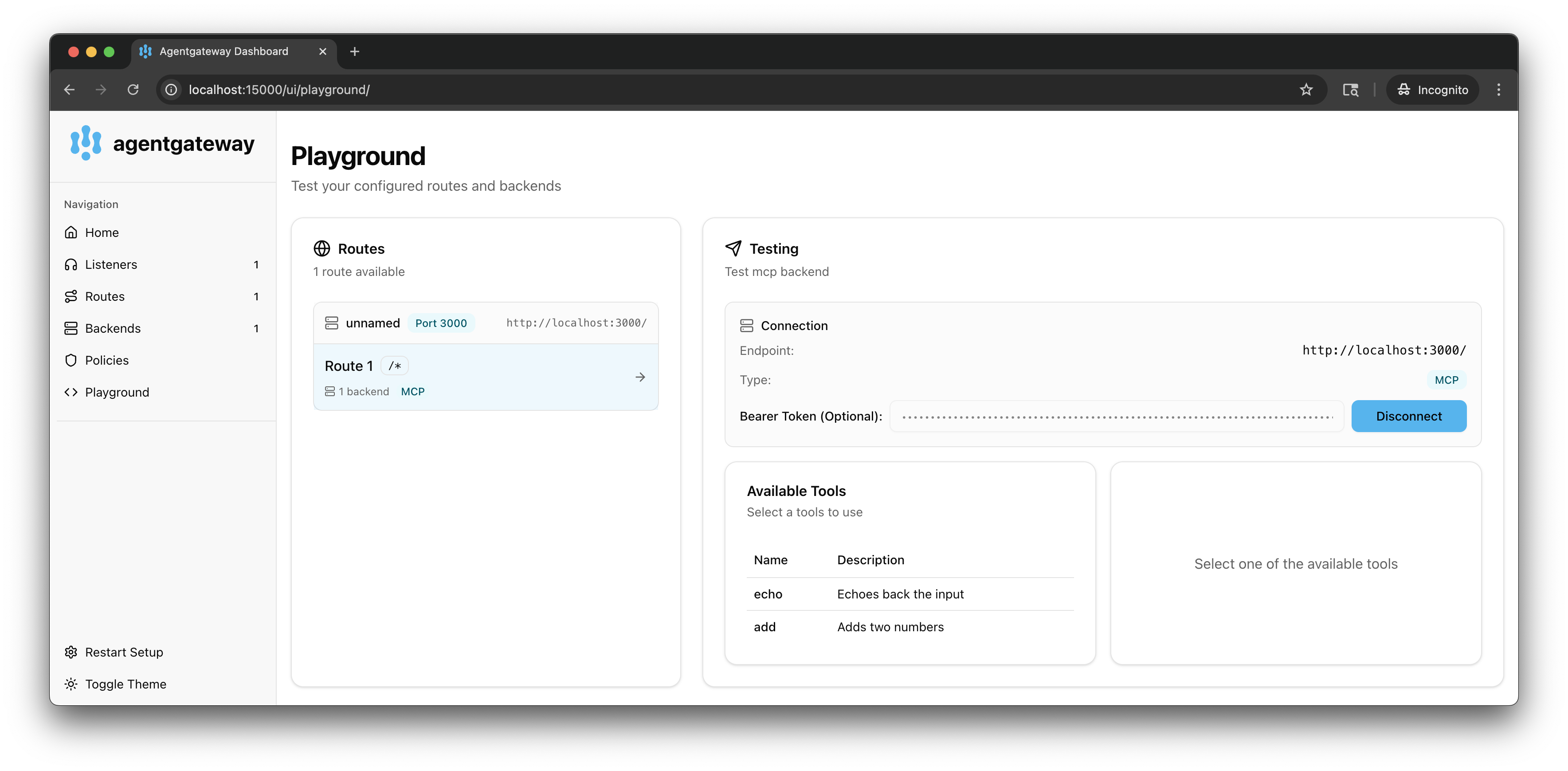

   3. Verify that you now have access to two tools as allowed in the JWT policy: echo and add. This user does not have access to the printEnv tool because the JWT does not have a matching claim.



6. Verify that you get access to even more tools with a JWT that has a matching claim.

   1. In a new browser tab, copy the JWT from the example1.key file. This JWT is for the test-user and has a matching claim. To review the JWT details, you can use a tool like jwt.io.

   2. In the Playground UI, click Disconnect to end your previous session with the example2 JWT.

   3. Copy the example1 JWT into the Bearer Token field and click Connect.

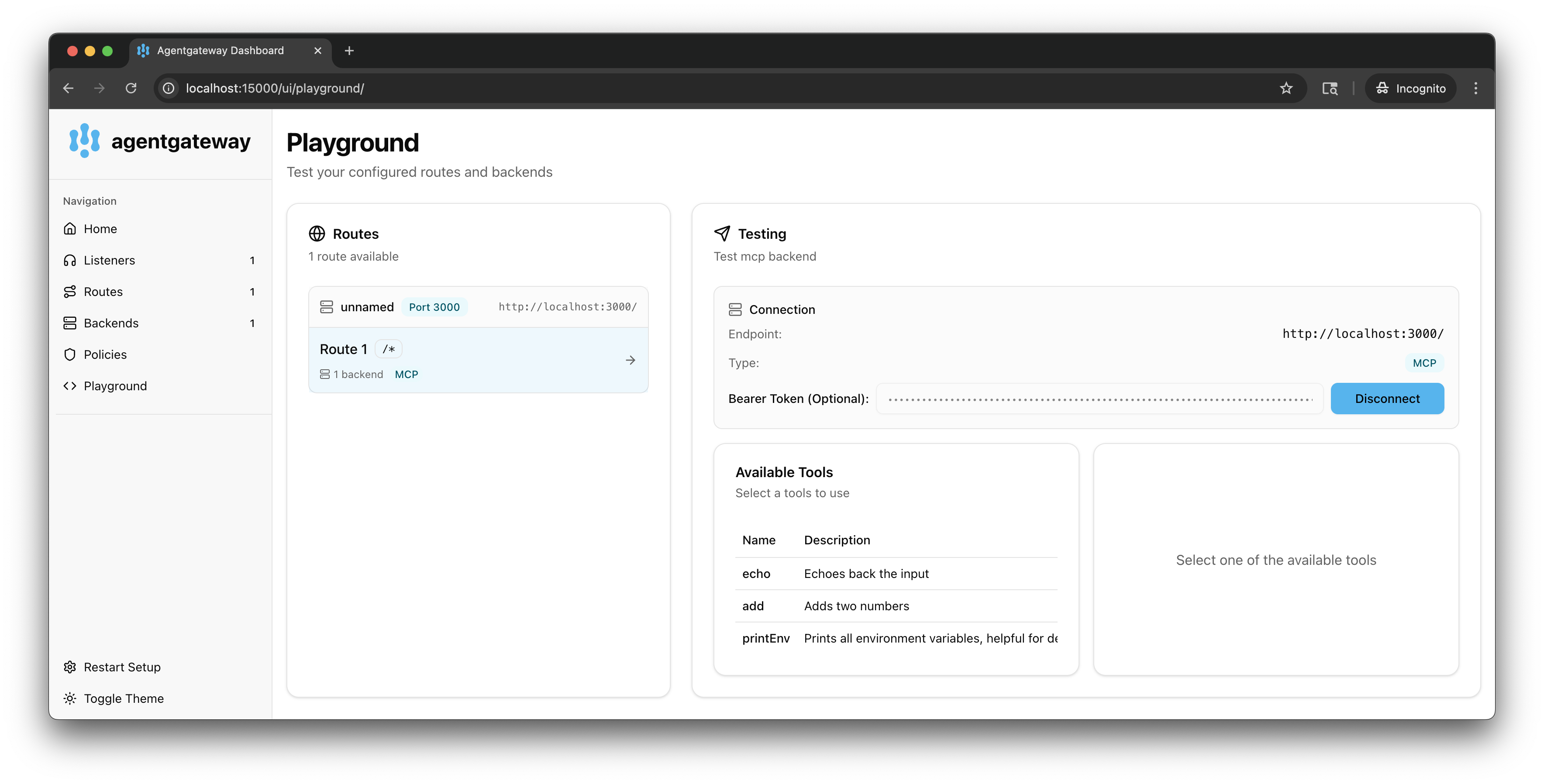

   4. Verify that you now have access to the tools as allowed in the JWT policy: echo, add, and printEnv.
