Choose whether agentgateway stores UI-managed configuration in your config file, in a database, or not at all.

About

Agentgateway always reads a configuration file at startup. To control how configuration updates are persisted while agentgateway is running, such as when you use the UI or send a request to the config resource API, decide on your storage mode.

Storage modes

Set the mode in the config.storage.mode field of your configuration file. The mode values are file, hybrid, and readOnly, which are the literal values that the field accepts. Because the field is in the config section, agentgateway applies it at startup only, so a change to it takes effect after a restart.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
config:
  storage:
    mode: hybrid          # file, hybrid, or readOnly
  database:
    url: sqlite:///config/data.db   # required only in hybrid mode
gateways:
  default:
    port: 4000
ui:
  gateways: default

Review the following table to understand this configuration.

In hybrid mode, agentgateway never writes back to your configuration file. Instead, it stores the resource in the database that you configure in the UI or API, and layers it over the file value when it reads the configuration. Note that you can only update certain resources through the UI or API. For more information, see What the database stores.

What the database stores

The database holds only the resource types in the following table. Everything else in the configuration file, such as the config section and the structure of the file itself, comes from your configuration file.

The overlay only adds resources. It does not replace a resource that your configuration file already defines. For example, in hybrid mode you can add a gateway in the UI, and agentgateway serves it alongside the gateways in your file. But if the resource that you store has the same name as one in your file, agentgateway rejects the write with a 409 response.

"config resource traffic.gateway/default conflicts with file-owned resource"

To change a resource that your configuration file already defines, or to change a field that the database cannot hold, such as anything in the top-level config section, edit the configuration file that agentgateway reads at startup.

How each installation method differs

All three modes are available in all three installation methods, because the mode is a field in the same configuration file that every method reads. What differs is whether that file is writable, and how you set the mode.

In the binary and Docker installations, you set config.storage.mode in your file, so all three modes are available to you directly. In the Helm installation, the chart derives config.storage.mode from its own mode value and overwrites anything that you set for the field yourself, so the chart offers file and hybrid storage only.

Binary and Docker

With the binary and Docker installations, your configuration file is writable, so the default file mode works with no extra setup and the UI can save your changes.

file mode

Use file mode when you want the UI to save your changes into the same configuration file that you edit by hand. No configuration is needed for this mode, because file is the default. The following steps confirm the behavior and show what agentgateway writes.

1. Confirm the storage mode that the running instance uses.

   curl -s http://localhost:15000/api/runtime | jq '.ui.configStoreMode'

   Example output:

   "file"

2. Add an MCP server. The UI and the config resource API write to the same place, so use whichever you prefer.

   UIAPI

   1. Open the UI in your browser.

   2. In the navigation, click MCP. If your configuration file has no mcp section yet, the entry is Get started. Click it, then click Enable to have agentgateway add the section to your file. If the file already has an mcp section, the entry is Servers instead and you can skip this step.

   3. On the MCP Servers page, click Add server.

   4. Enter a Server name, such as my-target, keep the Streamable HTTP transport, and enter the URL of your MCP server, such as http://example.com/mcp.

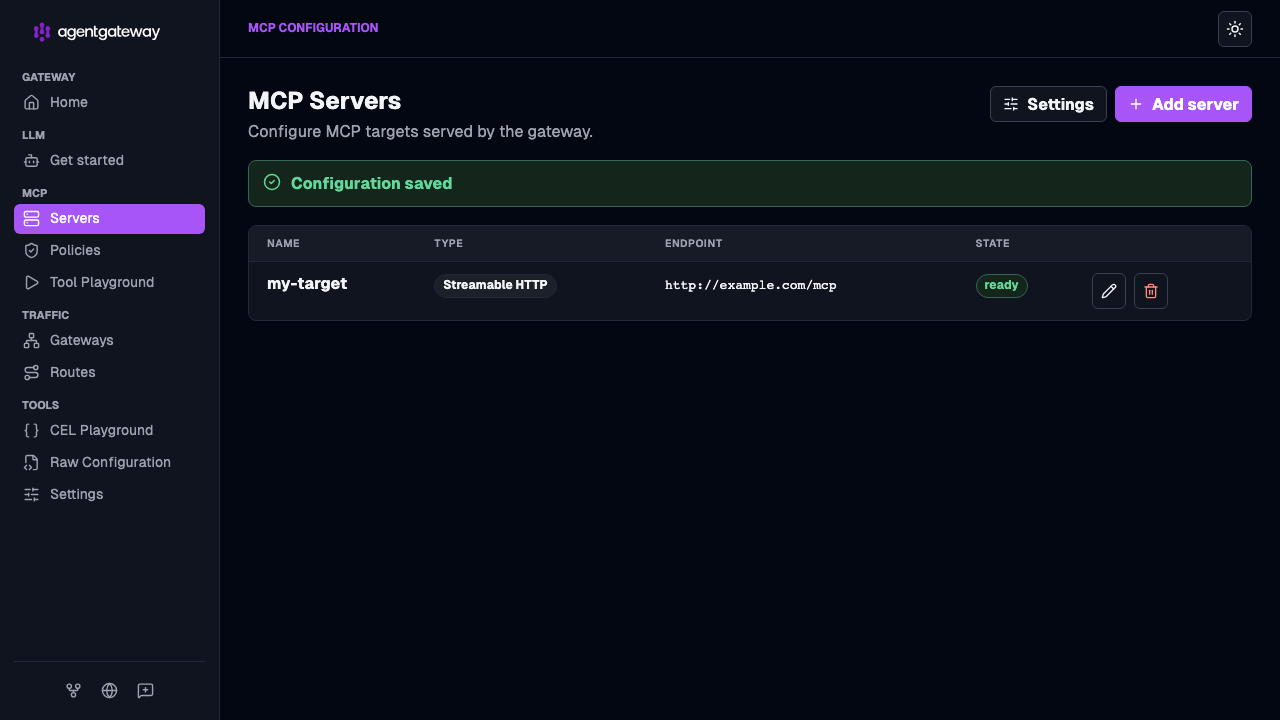

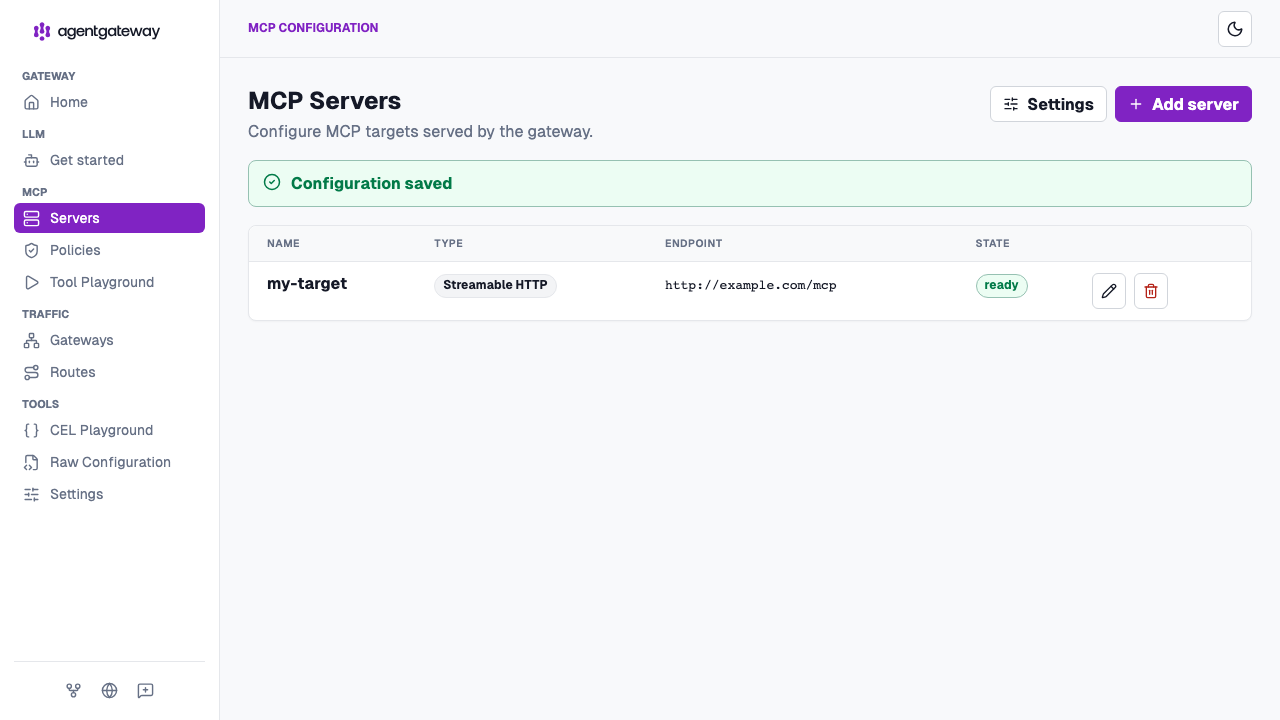

   5. Click Save server. Agentgateway writes the server into your configuration file, reloads the file, and confirms with Configuration saved.





   Send the same request that the UI sends when you save a server. The request is a PUT to the config resource API for the mcp.target resource type, and its body is the list of MCP targets that you want that resource type to hold.

   curl -s -X PUT http://localhost:15000/api/config/resources/mcp.target \
     -H 'Content-Type: application/json' \
     -d '{"resources":[{"value":{"name":"my-target","mcp":{"host":"http://example.com/mcp"}}}]}'

3. Review your configuration file. Agentgateway added the server, and created the mcp section because the file did not have one.

   # yaml-language-server: $schema=https://agentgateway.dev/schema/config
   gateways:
     default:
       port: 4000
   ui:
     gateways: default
   mcp:
     targets:
     - name: my-target
       mcp:
         host: http://example.com/mcp

   Note

   If you enabled MCP in the UI, the mcp section also has a port field, because Enable writes the capability’s default port along with the empty targets list.

Agentgateway preserves the schema comment at the top of the file, and reloads the file after it writes to it.

hybrid mode

Use hybrid mode when you want the configuration file to stay exactly as you wrote it, and UI edits to persist somewhere else. Agentgateway accepts a postgres:// or postgresql:// URL for PostgreSQL, and treats any other value as a SQLite database path.

1. Set the storage mode and a database URL in your configuration file. A generated configuration already has the database field, which points at a SQLite file next to the configuration file. In that case, you add only the storage field.

   The example also adds an empty mcp section. In hybrid mode agentgateway treats your file as a read-only baseline, so the UI cannot add a section to it, only resources within a section that already exists. For more information, see Sections must exist in the file.

   # yaml-language-server: $schema=https://agentgateway.dev/schema/config
   config:
     storage:
       mode: hybrid
     database:
       url: sqlite:///config/data.db
   gateways:
     default:
       port: 4000
   ui:
     gateways: default
   mcp:
     targets: []

2. Restart agentgateway. The config section is applied at startup, so the new mode does not take effect until the process restarts. For more information, see Fields that require a restart.

   BinaryDocker

   Stop the current process, such as with ctrl+c, then start it again.

   agentgateway -f config.yaml

   docker restart <container-name>

3. Confirm the storage mode.

   curl -s http://localhost:15000/api/runtime | jq '.ui.configStoreMode'

   Example output:

   "hybrid"

4. Add an MCP server. The UI and the config resource API write to the same place, so use whichever you prefer.

   UIAPI

   1. Open the UI in your browser.

   2. In the navigation, click MCP > Servers, then click Add server.

   3. Enter a Server name, such as persisted-target, keep the Streamable HTTP transport, and enter the URL of your MCP server, such as http://example.com/mcp.





   4. Click Save server. Agentgateway stores the server in the database, leaves your configuration file untouched, and confirms with Configuration saved.





   Note

   The navigation offers Servers only because your configuration file already has an mcp section. Without it, the entry is Get started, and clicking Enable fails with File configuration is read-only in hybrid mode. For more information, see Sections must exist in the file.

   Send the same request that the UI sends when you save a server.

   curl -s -X PUT http://localhost:15000/api/config/resources/mcp.target \
     -H 'Content-Type: application/json' \
     -d '{"resources":[{"value":{"name":"persisted-target","mcp":{"host":"http://example.com/mcp"}}}]}'

   Agentgateway returns the stored resource, with the revision and timestamps that it tracks in the database.

   {"resources":[{"kind":"mcp.target","id":"persisted-target","value":{"name":"persisted-target","mcp":{"host":"http://example.com/mcp"}},"revision":1,"createdAt":"2026-08-21T21:51:21.951418797Z","updatedAt":"2026-08-21T21:51:21.951418797Z"}]}

5. Confirm that your configuration file is unchanged. The mcp section is still the empty one that you wrote, because agentgateway stored the server in the database instead of adding it here. In file mode, the same save would have appended the target to this list.

   cat config.yaml

   Example output:

   # yaml-language-server: $schema=https://agentgateway.dev/schema/config
   config:
     storage:
       mode: hybrid
     database:
       url: sqlite:///config/data.db
   gateways:
     default:
       port: 4000
   ui:
     gateways: default
   mcp:
     targets: []

6. Confirm that the effective configuration includes the server anyway. Agentgateway merges the stored resource over the file.

   curl -s http://localhost:15000/api/config/effective | jq -c '.mcp'

   Example output:

   {"targets":[{"name":"persisted-target","mcp":{"host":"http://example.com/mcp"}}]}

7. Restart agentgateway again, then confirm that the server is still stored.

   curl -s http://localhost:15000/api/config/resources | jq '.resources[].id'

   Example output:

   "persisted-target"

readOnly mode

Use readOnly mode when your configuration file is the only source of truth and you want the UI to have read access only.

1. Set the mode in your configuration file.

   # yaml-language-server: $schema=https://agentgateway.dev/schema/config
   config:
     storage:
       mode: readOnly
   gateways:
     default:
       port: 4000
   ui:
     gateways: default

2. Restart agentgateway, then confirm the mode.

   curl -s http://localhost:15000/api/runtime | jq '.ui.configStoreMode'

   Example output:

   "readOnly"

3. Confirm that a write is rejected.

   curl -s -X PUT http://localhost:15000/api/config/resources/mcp.target \
     -H 'Content-Type: application/json' \
     -d '{"resources":[{"value":{"name":"rejected","mcp":{"host":"http://example.com/mcp"}}}]}' \
     -w "\nHTTP %{http_code}\n"

   Example output:

   "UI is configured as read-only"
   HTTP 403

The UI still shows the running configuration in this mode. Only writes are rejected.

Helm

With the Helm chart, the configuration file is a ConfigMap that the chart renders from your Helm values and mounts read-only at the /config path. The proxy reads that file at startup, and the Helm values remain the source of truth.

Read-only storage keeps the deployment reproducible, but it also means that the UI cannot save anything. A save returns the following error, because write access to the mounted ConfigMap is denied.

failed to write to file `/config/config.yaml`: Read-only file system (os error 30)

To let the UI store configuration, connect a PostgreSQL instance to your agentgateway pod and switch the Helm chart to database mode. Agentgateway then treats the ConfigMap as a baseline and keeps UI-managed resources in the database. When you make updates to these resources in the UI, agentgateway merges the resources from the database with the baseline in the ConfigMap.

Chart modes

In a Helm installation, you do not set config.storage.mode yourself. Instead, you set the chart’s mode value, and the chart renders the equivalent agentgateway storage mode into the ConfigMap for you.

Everything that you put in your Helm values is part of the baseline, including the fields that you can later edit in the UI. In database mode, agentgateway never writes back to the ConfigMap. Instead, it stores your UI edit in the database and layers it over the baseline value when it reads the configuration.

To choose a mode, set the chart’s mode value. Do not set the config.storage.mode or config.database.url fields in your Helm values, because the chart derives both fields from mode and overwrites anything that you set for them. The chart also rejects a mode value other than readonly or database.

Sections must exist in the file

Adding a capability in the UI adds a section to the configuration file, and in hybrid mode agentgateway never writes that file. Although the database can store the resources within a section, the UI cannot add the section itself.

Without a pre-existing section in the config for MCPs, LLMs, or gateways, the UI navigation shows a Get started path, but clicking Enable fails with the following error, because enabling the capability requires adding the section to the file.

File configuration is read-only in hybrid mode. Copy the diff and update the configuration file directly.

To allow the UI to configure sections in your configuration file, you must define these sections in your Helm values file, even if they are empty, as shown in the following example and in the following steps.

config:
  mcp:
    targets: []

Deploy PostgreSQL

For a production deployment, use a managed PostgreSQL instance or an operator that handles backups and failover. The following example deploys a single instance for testing.

1. Create a Secret for the database credentials. The following example creates the agw user with a password password.

   kubectl create secret generic agentgateway-postgres \
     -n agentgateway-system \
     --from-literal=POSTGRES_USER=agw \
     --from-literal=POSTGRES_PASSWORD='password' \
     --from-literal=POSTGRES_DB=agw

2. Deploy PostgreSQL.

   kubectl apply -n agentgateway-system -f - <<'EOF'
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: postgres
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: postgres
     template:
       metadata:
         labels:
           app: postgres
       spec:
         containers:
         - name: postgres
           image: postgres:16-alpine
           envFrom:
           - secretRef:
               name: agentgateway-postgres
           env:
           - name: PGDATA
             value: /var/lib/postgresql/data/pgdata
           ports:
           - containerPort: 5432
           volumeMounts:
           - name: data
             mountPath: /var/lib/postgresql/data
         volumes:
         - name: data
           emptyDir: {}
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: postgres
   spec:
     selector:
       app: postgres
     ports:
     - port: 5432
       targetPort: 5432
   EOF

3. Verify that PostgreSQL is running.

   kubectl rollout status deploy/postgres -n agentgateway-system

Switch to database mode

1. Set the mode value to database and provide the connection URL in your Helm values file. Agentgateway creates the schema that it needs on first startup, so no migration step is required. You can optionally preset llm and mcp sections so that you can edit in the UI later.

   Storage settingsStorage settings and UI sections

   Switch the release to database mode without changing which capabilities the UI can manage. Use this option when you manage the configuration file in Helm values and use the database only to persist the resources for the sections that you already define.

   cat <<'EOF' > values.yaml
   mode: database
   database:
     postgres:
       url: postgres://agw:[email protected]:5432/agw
   EOF

   Switch the release to database mode and add empty llm and mcp sections so that the UI can manage models, providers, and MCP servers. Agentgateway stores the resources that you add to these sections in the database, so the sections stay empty in your Helm values.

   cat <<'EOF' > values.yaml
   mode: database
   database:
     postgres:
       url: postgres://agw:[email protected]:5432/agw
   config:
     gateways:
       default:
         port: 4000
     llm:
       providers: []
       models: []
       virtualModels: []
     mcp:
       targets: []
     routes:
     - matches:
       - path:
           pathPrefix: /
       backends:
       - host: httpbin.httpbin.svc.cluster.local:8000
   EOF

   Because neither section sets gateways, agentgateway attaches the LLM and MCP routes to the gateway that is named default. To serve them on another gateway, such as a gateway that you restrict to internal clients, set gateways in each section, such as gateways: [internal].

   Note

   The chart rejects a database.postgres.url value that does not begin with postgres:// or postgresql://, and rejects the value entirely when mode is readonly. The URL is rendered into the ConfigMap, so use a database user with only the privileges that agentgateway needs.

2. Upgrade the release with your values file.

   helm upgrade -i agentgateway-standalone \
     oci://cr.agentgateway.dev/charts/agentgateway-standalone \
     --namespace agentgateway-system \
     --version 0.0.0-latest-dev \
     --reuse-values \
     -f values.yaml

3. Port-forward the admin address.

   kubectl port-forward -n agentgateway-system \
     deploy/agentgateway-standalone 15000:15000

4. Confirm that agentgateway now runs in hybrid storage mode.

   curl -s http://localhost:15000/api/runtime | jq '.ui.configStoreMode'

   Example output:

   "hybrid"

Add configuration in the UI

Now that storage is writable, add an MCP server. The UI and the config resource API write to the same place, so use whichever you prefer.

curl -s -X PUT http://localhost:15000/api/config/resources/mcp.target \
  -H 'Content-Type: application/json' \
  -d '{"resources":[{"value":{"name":"persisted-target","mcp":{"host":"http://example.com/mcp"}}}]}'

Verify that configuration persists

1. Review the effective configuration. Agentgateway merges the database overlay over the ConfigMap baseline, so the server appears alongside the routes that you set in your Helm values.

   curl -s http://localhost:15000/api/config/effective | jq

   Example output: Notice that your MCP server configuration is part of the merged config.

   "mcp": {
     "targets": [
       {
         "mcp": {
           "host": "http://example.com/mcp"
         },
         "name": "persisted-target"
       }
     ]
   },

2. Restart the agentgateway pod.

   kubectl rollout restart deploy/agentgateway-standalone \
     -n agentgateway-system

   kubectl rollout status deploy/agentgateway-standalone \
     -n agentgateway-system

3. Port-forward the admin address again, then confirm that the server is still available, even after the restart. You can also refresh MCP > Servers in the UI and see it still listed.

   kubectl port-forward -n agentgateway-system \
     deploy/agentgateway-standalone 15000:15000

   curl -s http://localhost:15000/api/config/resources | jq '.resources[].id'

   Example output:

   "persisted-target"

Scale the deployment

Both storage modes support running more than one agentgateway proxy pod. In readonly mode, every agentgateway pod reads the same ConfigMap. In database mode, every agentgateway pod reads the same overlay from PostgreSQL, so a change that you make in the UI reaches all of them.

1. Add the replicaCount value to the values file that you created earlier, and set it to the number of agentgateway pods that you want to run. Keep the rest of your values, because the upgrade command passes the whole file and a value that you leave out returns to its default, which would send the release back to read-only storage.

   replicaCount: 3
   mode: database
   database:
     postgres:
       url: postgres://agw:[email protected]:5432/agw
   config:
     gateways:
       default:
         port: 4000
     llm:
       providers: []
       models: []
       virtualModels: []
     mcp:
       targets: []
     routes:
     - matches:
       - path:
           pathPrefix: /
       backends:
       - host: httpbin.httpbin.svc.cluster.local:8000

2. Upgrade the release with your values file.

   helm upgrade -i agentgateway-standalone \
     oci://cr.agentgateway.dev/charts/agentgateway-standalone \
     --namespace agentgateway-system \
     --version 0.0.0-latest-dev \
     --reuse-values \
     -f values.yaml

3. Verify that the deployment scaled to three agentgateway pods.

   kubectl get pods -n agentgateway-system \
     -l app.kubernetes.io/name=agentgateway-standalone

Cleanup
