Debug your setup

Inspect and troubleshoot a standalone agentgateway instance through the admin endpoints and the agctl command-line tool.

About

Agentgateway exposes an admin server on 127.0.0.1:15000 by default. The admin server provides the following endpoints for inspection and debugging.

You can change the admin address by setting the top-level adminAddr field in your config file, such as the following.

config:
  adminAddr: 127.0.0.1:16000

To inspect the proxy’s configuration and to capture per-request traces, use the agctl command-line tool. agctl wraps the admin endpoints and renders their output in formats that are easier to scan than raw JSON.

Inspect the loaded configuration

To dump the configuration that the running proxy has loaded, capture the JSON from the /config_dump endpoint and pass it to agctl config all.

1. Save the proxy’s config dump to a file.

   curl -s http://127.0.0.1:15000/config_dump > /tmp/agw-dump.json

2. Render it with agctl. Use -o yaml for a more readable view.

   agctl config all --file /tmp/agw-dump.json -o yaml

For complete steps, see Inspect agentgateway configuration.

Trace requests

To capture a per-request trace as agentgateway processes it, use agctl trace. The trace shows you the route that was selected, the policies that were applied, the backend that was chosen, and the response status. Tracing is invaluable for understanding why a request matched (or did not match) a route, why a policy was or was not applied, or why a request returned an unexpected status.

1. In one terminal, start a watch.

   agctl trace --local

2. In another terminal, send a request.

   curl http://127.0.0.1:3000/headers

   agctl opens a text-based terminal user interface (TUI) that walks you through the request and response lifecycle. Use --raw to print JSON Lines instead.

For complete steps, including how to inject a request from agctl itself, see Trace requests with agctl.

Enable debug logs

Agentgateway uses the same level syntax as RUST_LOG: error, warn, info, debug, and trace. You can change the level at runtime through the /logging endpoint, or set it in your config file at startup.

curl -X POST "http://localhost:15000/logging?level=debug"

current log level is typespec_client_core::http::policies::logging=warn,hickory_server::server::server_future=off,rmcp=warn,debug

config:
  logging:
    level: debug
    # optional: default is text
    format: json

The agentgateway process now writes debug log lines, such as the following.

2026-02-12T16:11:25.493503Z	debug	proxy::httpproxy	request before normalization: Request { method: OPTIONS, uri: /sse?sessionId=...

You can also set fine-grained levels per module by using the same RUST_LOG filter syntax, such as info,proxy::httpproxy=trace.

Capture profiles

Agentgateway includes pprof endpoints to help you investigate CPU and memory issues.

1. Optional: If you have not already, download Graphviz to visualize the profiles.

2. Capture a CPU profile. The default duration is 10 seconds; the example uses 30 seconds.

   curl -o cpu.pprof "http://127.0.0.1:15000/debug/pprof/profile?seconds=30"

3. Capture a heap profile.

   curl -o heap.pprof http://127.0.0.1:15000/debug/pprof/heap

4. Inspect the profile with go tool pprof.

   CPU profile

   go tool pprof -http=: cpu.pprof

   Heap profile

   go tool pprof -http=: heap.pprof

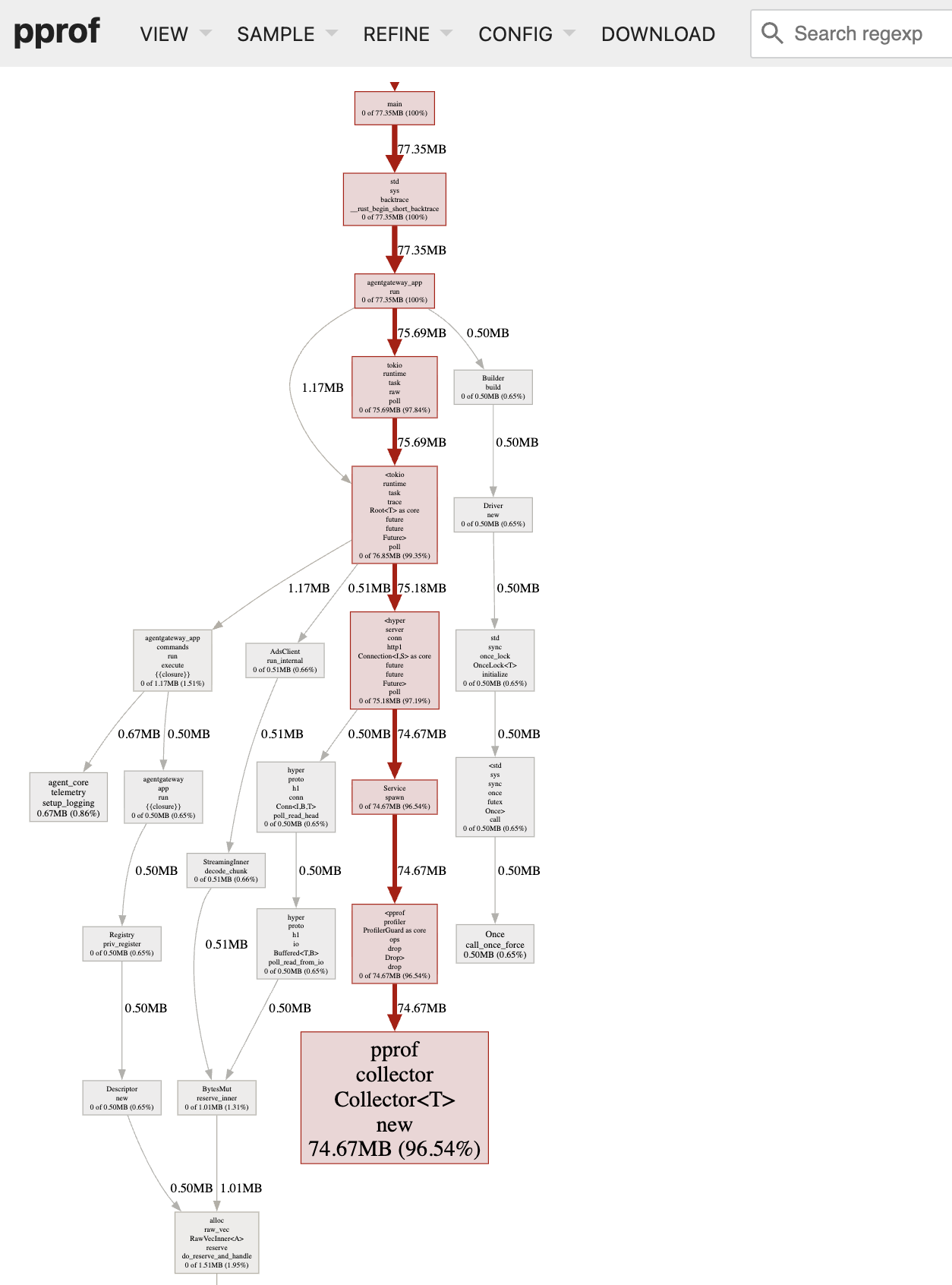

   Graphviz opens on your web browser to a UI on localhost. Example:
