Kagent

Use agentgateway with kagent.

Kagent is a Kubernetes-native AI agent framework that brings autonomous agents to cloud-native environments. It leverages Kubernetes primitives for agent lifecycle management, scaling, and orchestration.

What is kagent?

Kagent provides a Kubernetes-native approach to running AI agents:

CRD-based Configuration - Define agents as Kubernetes resources
Native Scaling - Horizontal pod autoscaling for agent workloads
MCP Support - Built-in Model Context Protocol for tool access
A2A Communication - Agent-to-agent messaging via Kubernetes services
GitOps Ready - Declarative agent definitions for Flux/ArgoCD

Why use agentgateway with kagent?

Kagent agents running in Kubernetes need enterprise governance:

Kubernetes Challenge	agentgateway Solution
Multi-tenant clusters	Namespace-aware policies
Service-to-service auth	mTLS and JWT validation
Distributed tracing	OpenTelemetry integration
Cost allocation	Per-namespace token tracking
Compliance requirements	Centralized audit logging

Before you begin

Follow the Get started guide to install agentgateway.
Follow the Sample app guide to create a gateway proxy with an HTTP listener and deploy the httpbin sample app.

Get the external address of the gateway and save it in an environment variable.

export INGRESS_GW_ADDRESS=$(kubectl get svc -n agentgateway-system http -o jsonpath="{.status.loadBalancer.ingress[0]['hostname','ip']}")
echo $INGRESS_GW_ADDRESS

Follow the Ollama guide to install and setup Ollama.

Architecture

This guide sets up kagent and agentgateway in a kind cluster, as shown in the following diagram.

    flowchart LR
 subgraph KindCluster["kind cluster"]
        kagentPods["kagent agent pods"]
        agentGateway["agentgateway<br>(agentgateway-system ns)<br>• auth / authz<br>• rate limiting<br>• audit logging<br>• observability"]
  end
    kagentPods --> agentGateway
    agentGateway --> ollama["Ollama<br>(host)"]
     kagentPods:::internal
     agentGateway:::internal
     ollama:::external
    classDef cluster stroke:#818cf8,fill:#eef2ff
    classDef internal stroke:#a78bfa,fill:#f5f3ff
    classDef external stroke:#fb923c,fill:#fff7ed
    style kagentPods stroke:#a78bfa,fill:#ffffff
    style agentGateway fill:#ffffff,stroke:#AA00FF
    style ollama fill:#ffffff,stroke:#00C853
    style KindCluster stroke:#2962FF,fill:#ffffff

Install kagent

Install kagent in your cluster. For more information, see the kagent docs.

Install kagent CRDs.

helm install kagent-crds oci://ghcr.io/kagent-dev/kagent/helm/kagent-crds \
    --namespace kagent \
    --create-namespace

Install kagent.

helm install kagent oci://ghcr.io/kagent-dev/kagent/helm/kagent \
  --namespace kagent \
  --create-namespace \
  --set providers.default=ollama \
  --set providers.ollama.baseUrl=http://agentgateway-proxy.agentgateway-system.svc.cluster.local/v1 \
  --set providers.ollama.apiKey=dummy

Verify everything is up and running.

kubectl get pods -n kagent

Example output:

argo-rollouts-conversion-agent-7f8cdbd6f7-6tvl2   1/1     Running   0              5h2m
cilium-debug-agent-6588998448-gr8tc               1/1     Running   0              5h2m
cilium-manager-agent-d9468b549-tbqmk              1/1     Running   0              5h2m
cilium-policy-agent-68d6c9bbf8-tgrzc              1/1     Running   0              5h2m
helm-agent-66845fccdb-65wj5                       1/1     Running   0              5h2m
istio-agent-6968fddf87-qtcrg                      1/1     Running   0              5h2m
k8s-agent-64858b5476-6nw76                        1/1     Running   0              168m
kagent-controller-9bfbc5b5b-lfxfx                 1/1     Running   0              5h5m
kagent-grafana-mcp-64c84f5b59-jpp98               1/1     Running   0              5h5m
kagent-kmcp-controller-manager-877f8dd7c-brw5h    1/1     Running   0              5h5m
kagent-postgresql-7956f487fd-fznnz                1/1     Running   0              5h5m
kagent-querydoc-865fb84c44-kbl2m                  1/1     Running   0              5h5m
kagent-tools-55cc7db799-qrk5c                     1/1     Running   0              5h5m
kagent-ui-6d78884f6f-c64b5                        1/1     Running   0              5h5m
kgateway-agent-876d7c9dc-jpcbv                    1/1     Running   0              5h2m
observability-agent-7f8b568666-zvmbh              1/1     Running   0              5h2m
promql-agent-5499d6db5-lvf77                      1/1     Running   0              5h2m

Setup kagent

Create a ModelConfig that points to Ollama.

kubectl apply -f- <<EOF
apiVersion: kagent.dev/v1alpha2
kind: ModelConfig
metadata:
  name: llama3-model-config
  namespace: kagent
spec:
  model: llama3
  provider: Ollama
  ollama:
    host: agentgateway-proxy.agentgateway-system.svc.cluster.local
EOF

Verify that kagent is accessible and correctly functioning.

export INGRESS_GW_ADDRESS=$(kubectl get svc -n kagent kagent-ui -o jsonpath="{.spec.clusterIP}")
echo $INGRESS_GW_ADDRESS

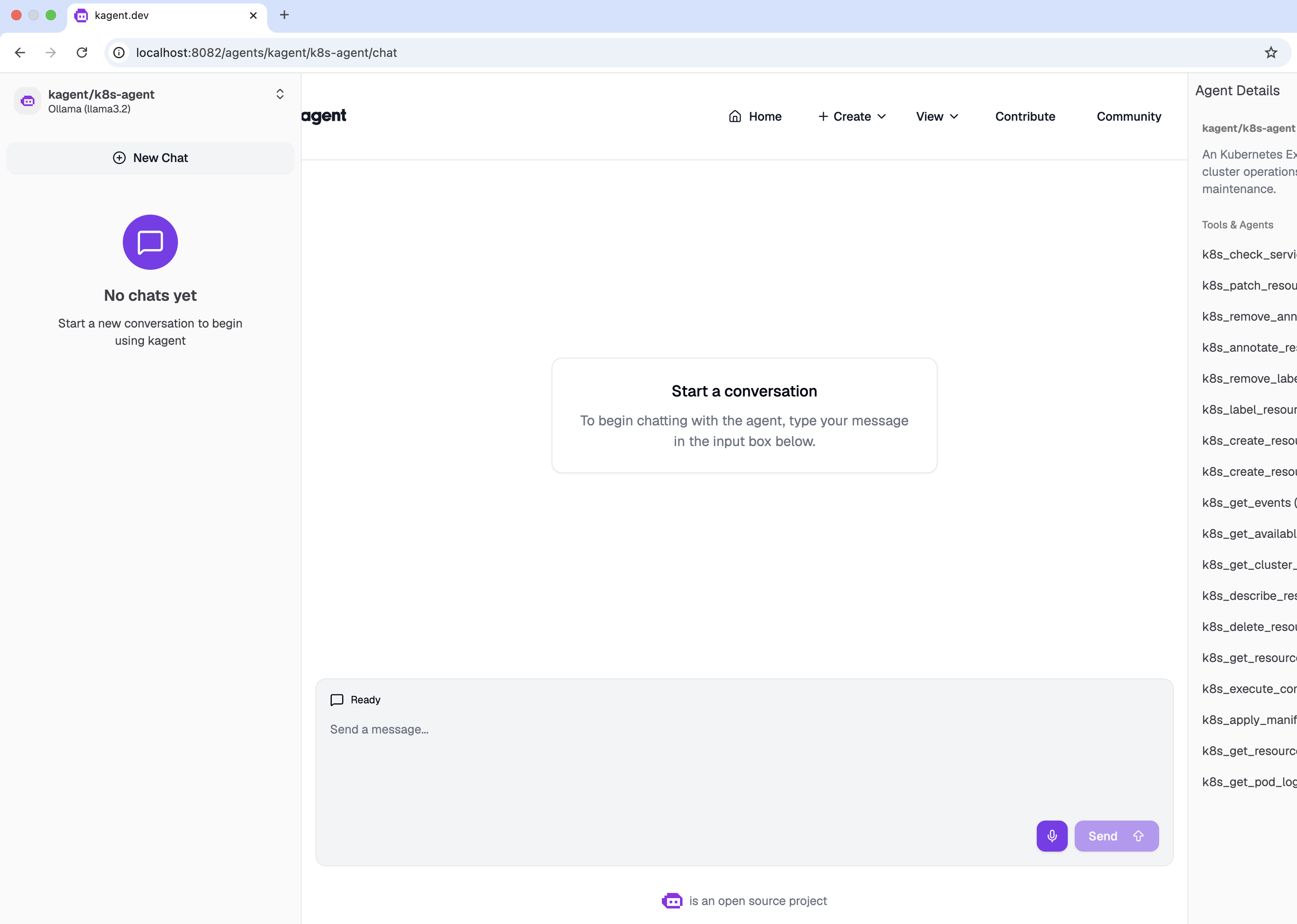

Open the kagent UI and try the default k8s-agent to confirm everything works end-to-end.

Governance Capabilities

Agentgateway provides policies that you can use to govern your kagent environment.

Block requests with PII

Create an AgentgatewayPolicy resource to deny requests to the LLM provider that include PII, such as a email string in the request body on. For more examples, see the Guardrails docs.

kubectl apply -f - <<EOF
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: prompt-guard
  namespace: agentgateway-system
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: ollama
  backend:
    ai:
      promptGuard:
        request:
        - response:
            message: "Rejected due to inappropriate content"
          regex:
            action: Reject
            matches:
            - "email"
EOF

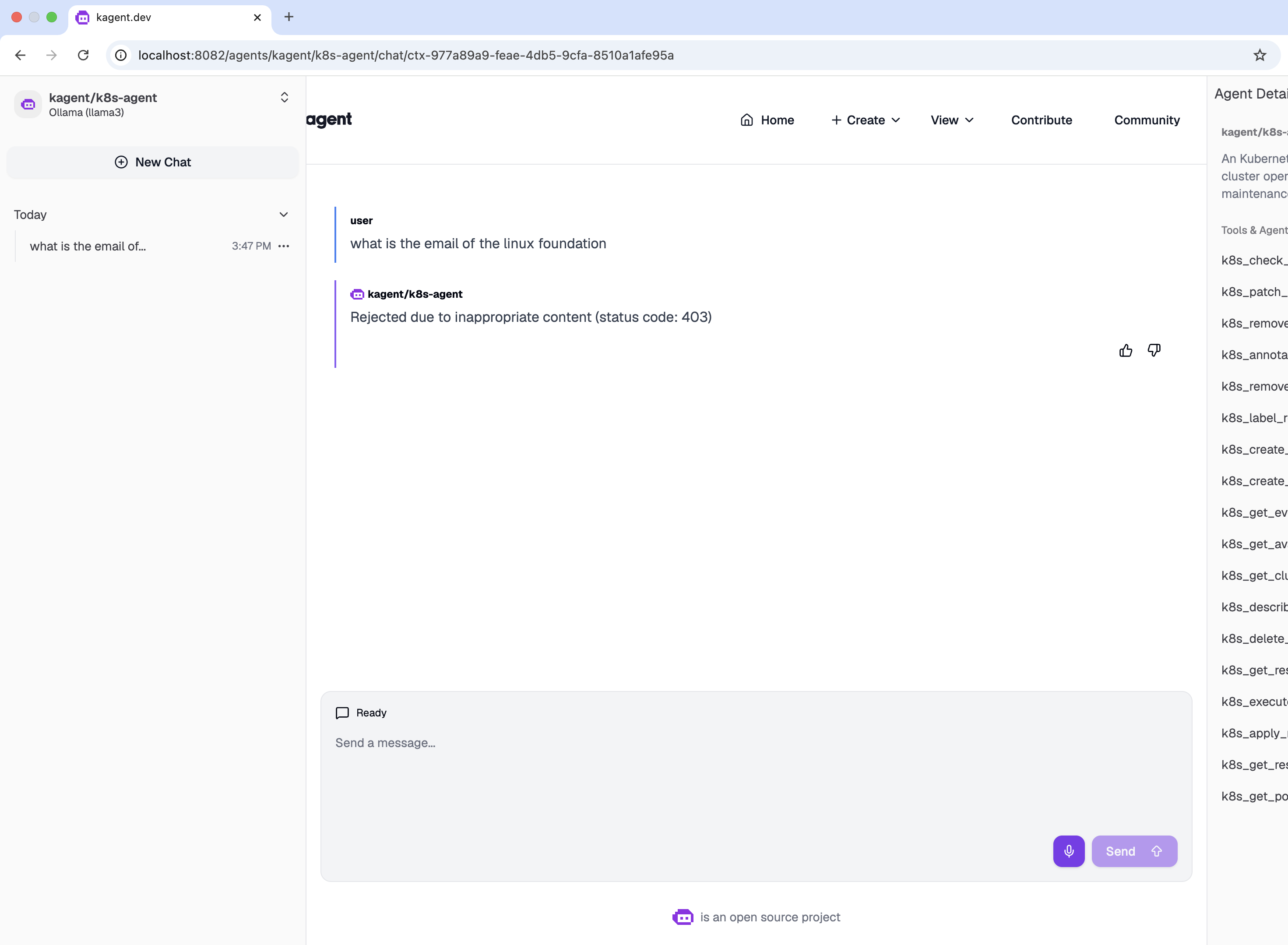

Verify the policy by sending a prompt to your agent through the kagent UI that includes the word email. You get a 403 response.

Cleanup

You can remove the resources that you created in this guide.

kubectl delete agentgatewaypolicy prompt-guard -n agentgateway-system
kubectl delete modelconfig llama3-model-config -n kagent
helm uninstall kagent --namespace kagent
helm uninstall kagent-crds --namespace kagent
kubectl delete namespace kagent
