Axiom

Export agentgateway traces, access logs, and metrics to Axiom.

Axiom is an observability platform that accepts OpenTelemetry traces, logs, and metrics. Agentgateway can export traces and access logs directly to Axiom over OpenTelemetry Protocol (OTLP) HTTP. An OpenTelemetry Collector scrapes the agentgateway Prometheus endpoint and forwards metrics to Axiom.

Before you begin

Install agentgateway in your Kubernetes cluster.
Set up an agentgateway proxy.
Set up an LLM provider and route in agentgateway.
Install the kubectl and helm command-line tools.
Sign up for an Axiom account.

Create the Axiom datasets and API token

Axiom requires a dedicated dataset for each OpenTelemetry signal. Create two Events datasets for traces and access logs, and one Metrics dataset for metrics. Then, create an API token that can send data to all three datasets, and store the token in a Kubernetes Secret.

Log in to the Axiom dashboard.
Go to Settings > Datasets and views, and click New dataset.
Create the following datasets. You can use different names.
Example name Kind Signal
agentgateway-traces Events Traces
agentgateway-logs Events Access logs
agentgateway-metrics Metrics Metrics
Go to Settings > API tokens, and click New API token.
Give the token a name, select Basic, and grant it ingest access to all three datasets.
Create the token and copy it immediately. Axiom does not display the token again.

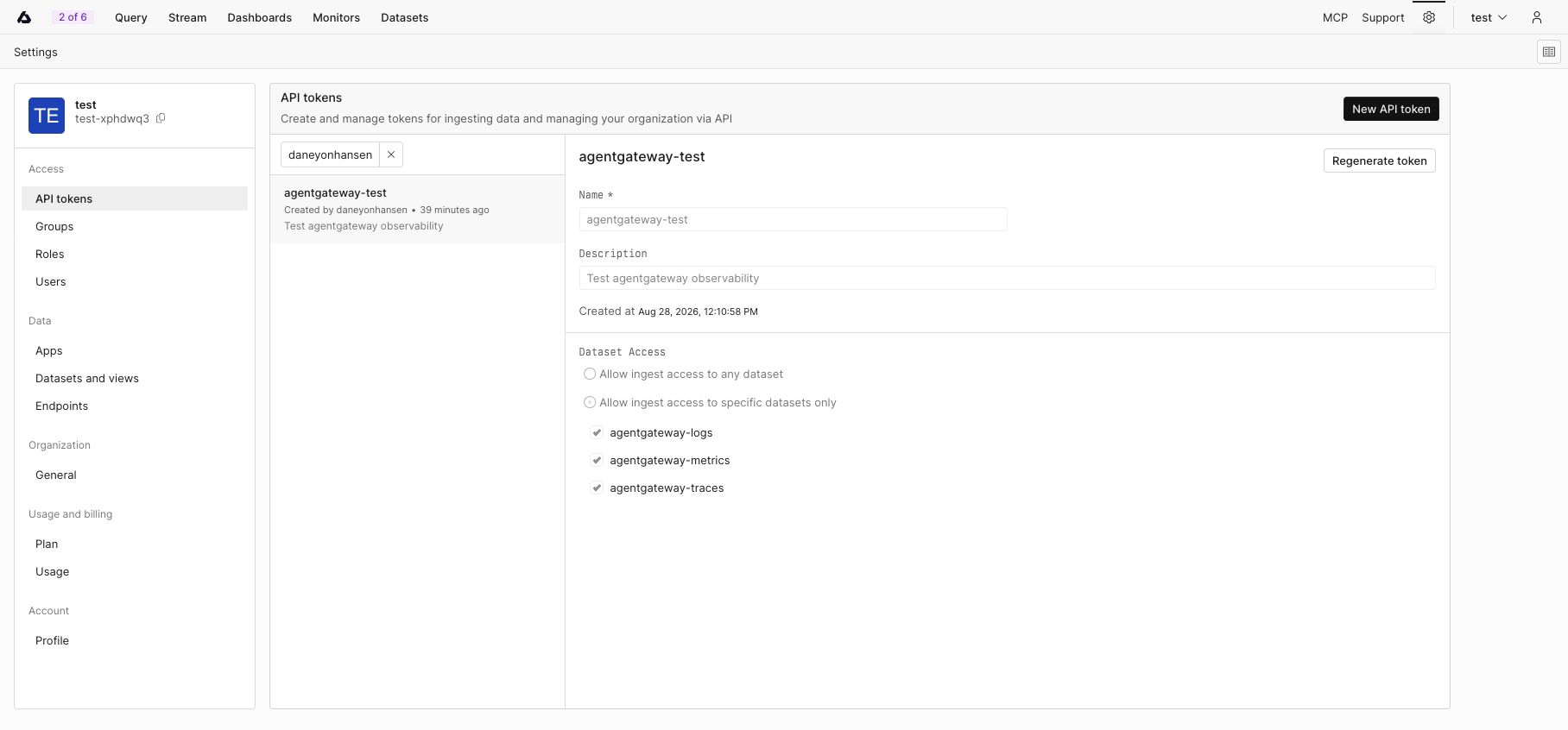

A Basic Axiom API token scoped to the three agentgateway telemetry datasets.
A Basic Axiom API token scoped to the three agentgateway telemetry datasets.

Example name	Kind	Signal
`agentgateway-traces`	Events	Traces
`agentgateway-logs`	Events	Access logs
`agentgateway-metrics`	Metrics	Metrics

Save the token and dataset names in environment variables. Do not commit these values to source control.

export AXIOM_API_TOKEN="<your-api-token>"
export AXIOM_TRACES_DATASET="agentgateway-traces"
export AXIOM_LOGS_DATASET="agentgateway-logs"
export AXIOM_METRICS_DATASET="agentgateway-metrics"

Set the Axiom ingest domain. The following example uses the Axiom Cloud API endpoint. If your datasets use an edge deployment, set this variable to its base domain instead. Include only the hostname, without a scheme such as https:// and without a trailing path.
```
export AXIOM_DOMAIN="api.axiom.co"
```

Create a Kubernetes Secret in the same namespace as the agentgateway proxy. The Secret stores the complete bearer-token value that agentgateway and the OpenTelemetry Collector send in the Authorization header, along with the name of each dataset.

kubectl apply -f- <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: axiom-credentials
  namespace: agentgateway-system
type: Opaque
stringData:
  authorization: "Bearer ${AXIOM_API_TOKEN}"
  traces-dataset: "${AXIOM_TRACES_DATASET}"
  logs-dataset: "${AXIOM_LOGS_DATASET}"
  metrics-dataset: "${AXIOM_METRICS_DATASET}"
EOF

Export traces and access logs

Axiom selects the destination dataset from the x-axiom-dataset header, and traces and access logs go to different datasets. Because the header value is fixed per backend, create one AgentgatewayBackend for each signal. Then, attach an AgentgatewayPolicy that exports traces and access logs from the agentgateway-proxy Gateway.

Important

Before you continue, remove or update any existing AgentgatewayPolicy that configures tracing or OTLP access-log export for the same Gateway. Multiple policies might report ATTACHED=True, but only one exporter configuration per telemetry signal takes effect.

kubectl apply -f- <<EOF
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayBackend
metadata:
  name: axiom-traces
  namespace: agentgateway-system
spec:
  static:
    host: ${AXIOM_DOMAIN}
    port: 443
  policies:
    tls: {}
    auth:
      credentials:
      - location:
          header:
            name: Authorization
        secretRef:
          name: axiom-credentials
          key: authorization
      - location:
          header:
            name: x-axiom-dataset
        secretRef:
          name: axiom-credentials
          key: traces-dataset
---
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayBackend
metadata:
  name: axiom-logs
  namespace: agentgateway-system
spec:
  static:
    host: ${AXIOM_DOMAIN}
    port: 443
  policies:
    tls: {}
    auth:
      credentials:
      - location:
          header:
            name: Authorization
        secretRef:
          name: axiom-credentials
          key: authorization
      - location:
          header:
            name: x-axiom-dataset
        secretRef:
          name: axiom-credentials
          key: logs-dataset
---
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: axiom-observability
  namespace: agentgateway-system
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: agentgateway-proxy
  frontend:
    tracing:
      backendRef:
        group: agentgateway.dev
        kind: AgentgatewayBackend
        name: axiom-traces
        port: 443
      protocol: HTTP
      randomSampling: "true"
      clientSampling: "true"
      resources:
      - name: service.name
        expression: '"agentgateway"'
      attributes:
        add:
        - name: llm.input_messages
          expression: 'flattenRecursive(llm.prompt.map(c, {"message": c}))'
        - name: llm.output_messages
          expression: 'flattenRecursive(llm.completion.map(c, {"role": "assistant", "content": c}))'
    accessLog:
      otlp:
        backendRef:
          group: agentgateway.dev
          kind: AgentgatewayBackend
          name: axiom-logs
          port: 443
        protocol: HTTP
        attributes:
          add:
          - name: llm.input_messages
            expression: 'flattenRecursive(llm.prompt.map(c, {"message": c}))'
          - name: llm.output_messages
            expression: 'flattenRecursive(llm.completion.map(c, {"role": "assistant", "content": c}))'
EOF

Review the following fields before you apply the policy.

Field	Description
`protocol`	OTLP protocol variant. Set this field to `HTTP`, because Axiom accepts OTLP over HTTP. The default is `GRPC`.
`randomSampling`	Common Expression Language (CEL) expression that determines how often agentgateway starts a new trace. The value `"true"` traces every request, which is useful while you verify the integration. Lower this value for production traffic.
`clientSampling`	CEL expression that determines whether agentgateway honors a sampling decision that the client sends.
`resources`	Resource attributes that apply to every exported span, such as `service.name`. Each value is a CEL expression, so a literal string is quoted twice.
`attributes.add`	Extra key-value pairs to include in each span or access log entry. Each value is a CEL expression.

Neither exporter sets a path field, so agentgateway uses the default OTLP/HTTP paths, /v1/traces for traces and /v1/logs for access logs. Axiom expects both of these paths.

The llm.input_messages and llm.output_messages attributes export the prompt and the completion. Reading llm.prompt and llm.completion causes agentgateway to inspect the request and response bodies, so omit these attributes if you do not want to export message content.

Export metrics

Agentgateway exposes Prometheus metrics on port 15020. Install an OpenTelemetry Collector that discovers the annotated agentgateway proxy pods, scrapes their metrics, and exports the metrics to Axiom over OTLP/HTTP.

Unlike traces and access logs, Axiom requires the x-axiom-metrics-dataset header for metrics.

helm upgrade --install axiom-metrics-collector opentelemetry-collector \
  --repo https://open-telemetry.github.io/opentelemetry-helm-charts \
  --version 0.127.2 \
  --set mode=deployment \
  --set image.repository="otel/opentelemetry-collector-contrib" \
  --set command.name="otelcol-contrib" \
  --namespace=agentgateway-system \
  -f - <<EOF
clusterRole:
  create: true
  rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["get", "list", "watch"]

extraEnvs:
- name: AXIOM_AUTHORIZATION
  valueFrom:
    secretKeyRef:
      name: axiom-credentials
      key: authorization
- name: AXIOM_METRICS_DATASET
  valueFrom:
    secretKeyRef:
      name: axiom-credentials
      key: metrics-dataset

config:
  receivers:
    prometheus/agentgateway:
      config:
        scrape_configs:
        - job_name: agentgateway
          kubernetes_sd_configs:
          - role: pod
          relabel_configs:
          # Keep only the pods of Gateways that use the agentgateway GatewayClass.
          - action: keep
            regex: agentgateway
            source_labels:
            - __meta_kubernetes_pod_label_gateway_networking_k8s_io_gateway_class_name
          - action: keep
            regex: "true"
            source_labels:
            - __meta_kubernetes_pod_annotation_prometheus_io_scrape
          - action: replace
            regex: (.+)
            source_labels:
            - __meta_kubernetes_pod_annotation_prometheus_io_path
            target_label: __metrics_path__
          - action: replace
            separator: ":"
            source_labels:
            - __meta_kubernetes_pod_ip
            - __meta_kubernetes_pod_annotation_prometheus_io_port
            target_label: __address__
          - action: replace
            source_labels:
            - __meta_kubernetes_namespace
            target_label: namespace
          - action: replace
            source_labels:
            - __meta_kubernetes_pod_name
            target_label: pod
  exporters:
    otlphttp/axiom:
      endpoint: https://${AXIOM_DOMAIN}
      headers:
        Authorization: "\${env:AXIOM_AUTHORIZATION}"
        x-axiom-metrics-dataset: "\${env:AXIOM_METRICS_DATASET}"
  service:
    pipelines:
      metrics:
        receivers: [prometheus/agentgateway]
        processors: [memory_limiter, batch]
        exporters: [otlphttp/axiom]
EOF

Two kinds of variable appear in this command, and the difference matters.

${AXIOM_DOMAIN} has no backslash, so your shell substitutes the value before Helm reads the file.
\${env:AXIOM_AUTHORIZATION} is escaped, so the value reaches the collector’s configuration file unchanged. The collector then resolves it from the environment variable that extraEnvs sets from the Secret. This way, the token stays out of the Helm release.

The memory_limiter and batch processors come from the chart’s default configuration. For production deployments, review the collector’s resource requests, memory limiter, batching, and replica count for your expected telemetry volume.

Get the gateway address

Tip

Kind cluster? Kind does not support LoadBalancer services by default. To use this option with a Kind cluster, install and run cloud-provider-kind.

The following command reads the LoadBalancer IP address or hostname, whichever your cloud provider assigns.

export INGRESS_GW_ADDRESS=$(kubectl get svc -n agentgateway-system agentgateway-proxy \
  -o jsonpath="{.status.loadBalancer.ingress[0]['hostname','ip']}")

echo "Gateway address: $INGRESS_GW_ADDRESS"

After port-forwarding, the gateway is accessible at http://localhost:8080. Use localhost:8080 wherever the instructions reference $INGRESS_GW_ADDRESS.

kubectl port-forward -n agentgateway-system svc/agentgateway-proxy 8080:80

Verify the integration

Verify that Kubernetes accepted both backends and attached the policy to the Gateway.

kubectl get agentgatewaybackend axiom-traces axiom-logs \
  -n agentgateway-system
kubectl get agentgatewaypolicy axiom-observability \
  -n agentgateway-system

Both backends report ACCEPTED=True. The policy reports ACCEPTED=True and ATTACHED=True.

Verify that the metrics collector is running.

kubectl rollout status deployment/axiom-metrics-collector-opentelemetry-collector \
  -n agentgateway-system

Send an LLM request through agentgateway. The following example assumes that you configured an OpenAI-compatible provider and the gpt-3.5-turbo model.

curl http://$INGRESS_GW_ADDRESS/v1/chat/completions \
  -H 'content-type: application/json' \
  -d '{
    "model": "gpt-3.5-turbo",
    "messages": [
      {
        "role": "user",
        "content": "Reply with exactly: Axiom observability works"
      }
    ]
  }'

Find the request in the proxy logs and copy the trace.id value that the log line reports.

kubectl logs deployment/agentgateway-proxy -n agentgateway-system \
  | grep 'protocol=llm' \
  | tail -1

In Axiom, verify each signal.
- Click Stream, and select the traces Events dataset. Open the event that has the trace ID. Click Find trace to open the trace waterfall after Axiom recognizes the dataset as an OpenTelemetry trace dataset. Axiom also automatically creates an OpenTelemetry Traces dashboard for the dataset.
- Click Stream, select the access logs Events dataset, and find an access log that has the same trace ID.
- Click Query, select the metrics dataset, and query an agentgateway metric such as agentgateway_gen_ai_client_token_usage. The Stream view does not support Metrics datasets.

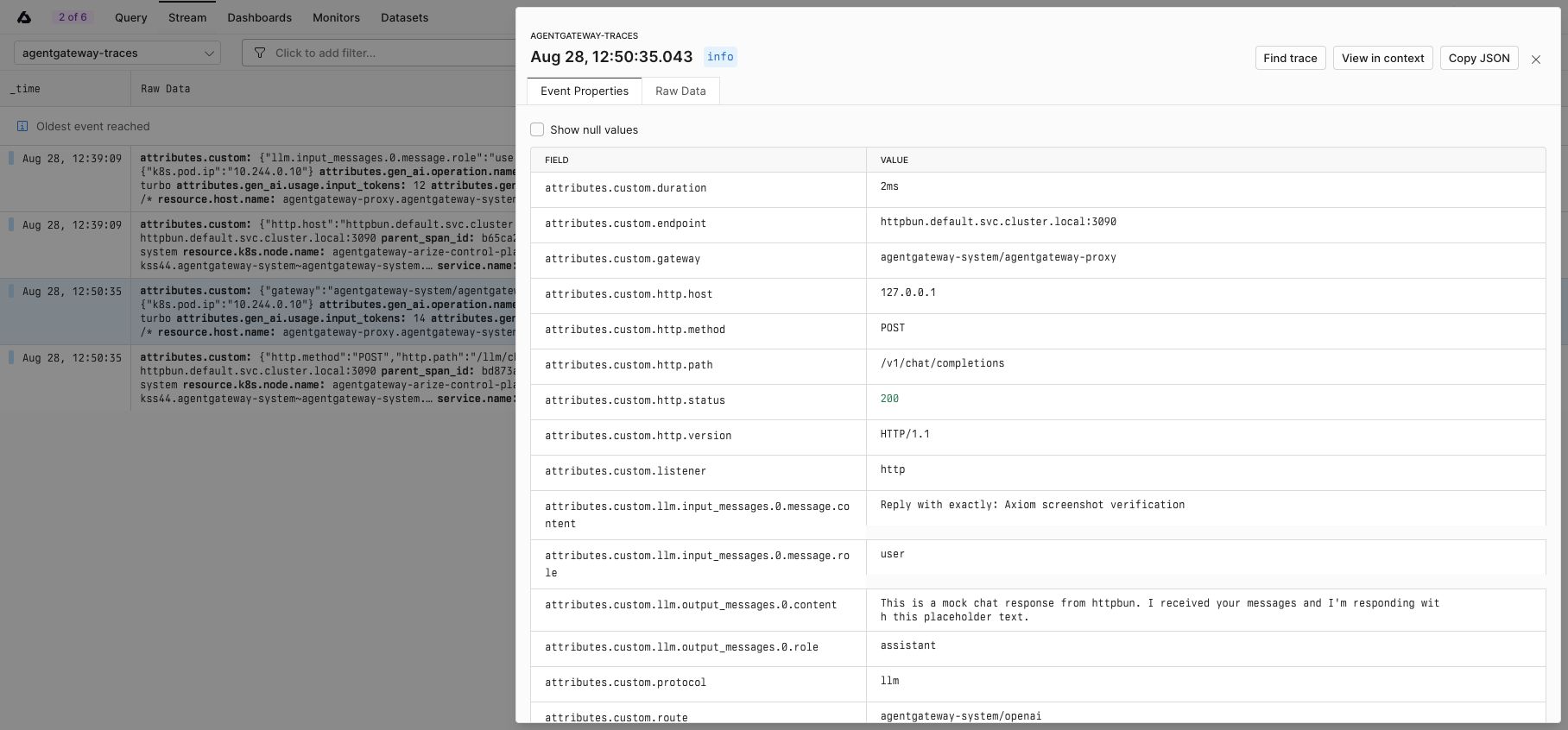

Axiom trace event details showing an agentgateway trace ID, OpenAI model, token usage, and LLM input and output — An agentgateway LLM trace in Axiom with request and response attributes.

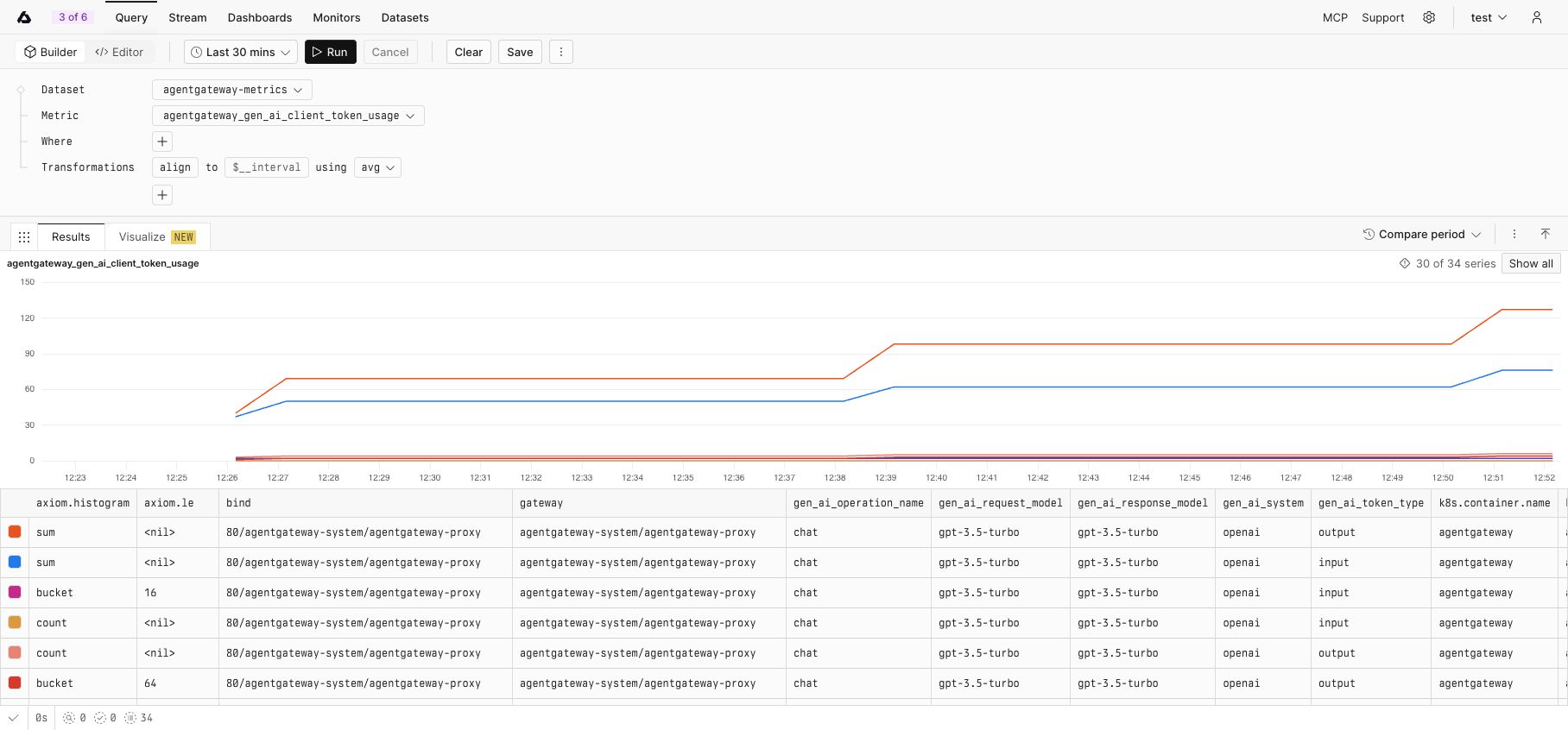

Axiom Query Builder displaying agentgateway generative AI client token usage metric results — Agentgateway LLM token usage metrics queried in Axiom.

Agentgateway and the collector batch their exports, so allow several seconds for new data to appear. Automatic dashboards and trace-dataset detection can take longer than event ingestion.

Troubleshoot the integration

Confirm that AXIOM_DOMAIN contains only the ingest hostname for the edge deployment that holds your datasets, without a scheme such as https:// and without a trailing path.
Confirm that the Basic API token has ingest access to all three datasets.
Confirm that the traces and access logs datasets use the Events kind and that the metrics dataset uses the Metrics kind.
Use x-axiom-dataset for traces and access logs, and x-axiom-metrics-dataset for metrics.
Confirm that no other policy configures the same telemetry signal on the Gateway.
```
kubectl get agentgatewaypolicy -n agentgateway-system
```
An Axiom policy and a previous observability policy can both report ATTACHED=True, even though only one trace exporter takes effect. Remove the previous policy, or combine the required settings into one policy.
Check the ACCEPTED and ATTACHED status columns for the backends and the policy.

Check the proxy logs for OTLP trace or access-log exporter errors.

kubectl logs deployment/agentgateway-proxy -n agentgateway-system \
  | grep -Ei 'opentelemetry|otlp|export'

Check the collector logs for metrics scrape or export errors.

kubectl logs deployment/axiom-metrics-collector-opentelemetry-collector \
  -n agentgateway-system

For more information, see the Axiom OpenTelemetry documentation.

Cleanup

kubectl delete agentgatewaypolicy axiom-observability -n agentgateway-system
kubectl delete agentgatewaybackend axiom-traces axiom-logs -n agentgateway-system
helm uninstall axiom-metrics-collector -n agentgateway-system
kubectl delete secret axiom-credentials -n agentgateway-system
